High back ergonomic mesh chair for executive room

The Compass executive chair provides office seating solutions that support individual comfort for a variety of tasks. Their wide range of aesthetic choices combines with a global design perspective to unite people and spaces. Configure and reconfigure these versatile Compass chairs for employee workstations, seated touchdown areas raised work surfaces, and private offices.

Back list Quote
Share:

DescriptionFunctionColor cardSizeVideo

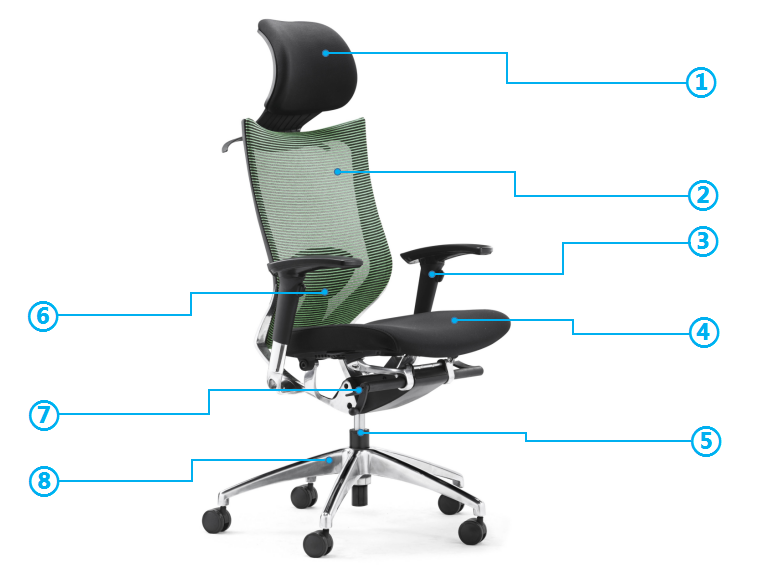

1.Headrest: A sleek-looking headrest can support your neck rest well with the fully upholstered fabric or leather. And also with the jacket hanger.
2.Backrest: A breathable polyester mesh suspension allows improved ventilation, to provide exceptional thermal comfort. Fibre-reinforced polyamide material (100% recyclable) in black colour. Optional upholstered leather.
3.Armrest: The 3-way adjustable armrest can adjust for 100mm height range. Armpad with PU can swivel into 3 angular positions to allow the user to rest their arms easily.
4.Seat: The seat is the adjustable slide for 50mm depth range. The seat consists of moulded polyurethane foam on a 2-piece shell structure, injection-moulded in back polypropylene. Seat height is adjustable by means of a pneumatic gas spring.
5. Gaslift: Pneumatic seat height adjustment moves the seat up and down to adapt to various body heights.
6.Lumbar Support Pad: Supportive lumbar pad can be easily retrofitted as optional. Adjustable for 40mm height range. Polypropylene material (100% recyclable) in black colour.
7.Mechanism: Customized aluminium synchronized mechanism features 4-position tilt lock, pneumatic seat height, tilt tension control by side knob and 2 seat angle positions.
8. Base: 700mm five-prong base of diecast aluminium alloy (100% recyclable) in a polished finish. 60mm dual-wheel castors of moulded polyamide (PU)for use on carpeted floors. An option nylon base.

  • Pneumatic seat height adjustment moves the seat up and down to adapt to various body heights.
  • 360-Degree swivel, it provides freedom of movement in any direction.
  • Tilt lock allows the user to lock out the tilt function.
  • Sliding seat to adapt to various body height.
  • 3D adjustable armrest.
  • Adjustable lumbar support.
  • Adjustable headrest.
