TFmini-i
12m Industrial-grade LiDAR Ranging Module
Compact Design
Cost Advantage
Compact Design
Online Message Download documents

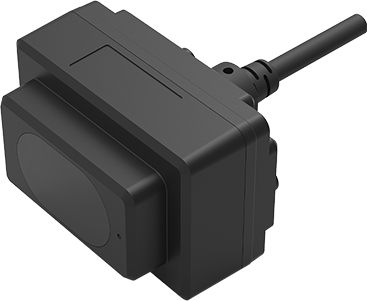

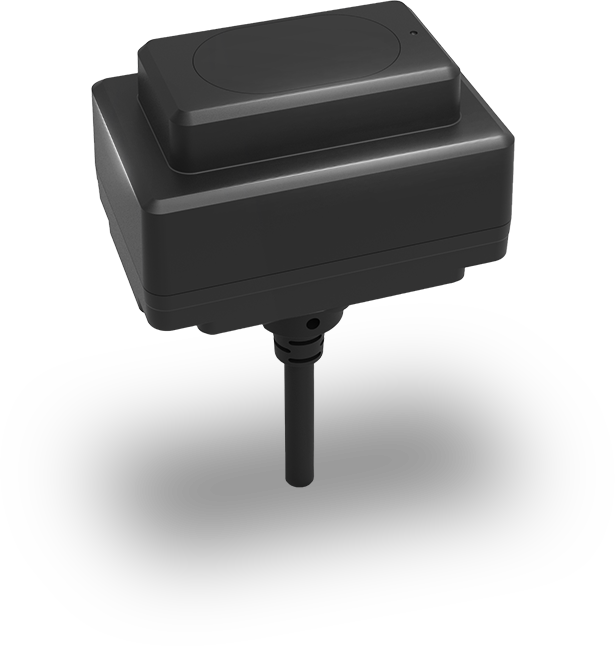

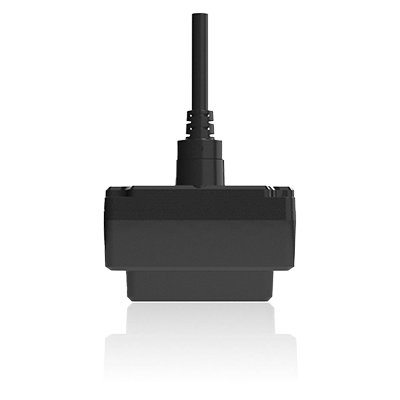

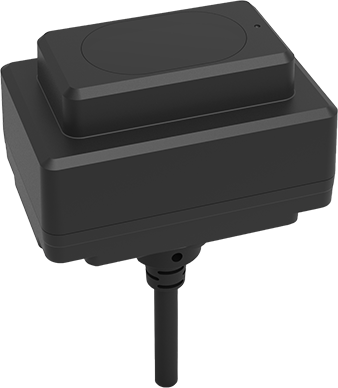

TFmini-i
12m Industrial-grade LiDAR Ranging Module
TFmini-i, based on the upgraded version of TFmini-S, is a compact short-range LiDAR sensor. Inherited advantages of low cost, small size and low power consumption from TFmini-S, TFmini-i has greatly improved its performance — increasing the measurement frequency, reducing blind zone, improving accuracy and stability. Meanwhile, TFmini-i introduces IP65 enclosures and optimizes various compensation algorithms, which has greatly expanded its application fields and scenarios.


Play Video
01
Small yet Powerful
Inherited TFmini-S's design concept – 'Small yet Powerful', TFmini-i, as large as a man's thumb, has greatly improved the overall performance. Blind zone narrows down to 10cm. Frame rate can reach 100Hz.  And the lowest power consumption is 85mW.
0.1m~12m
Operating Range
1%
Accuracy
85mW
Power Consumption
52g
Weight
02
Safe & Stable

Unlike the open structure of TFmini — Open form module, TFmini-i has been designed with IP65 enclosures, and also passed the vibration test of drone level, which will greatly expand its application fields. TFmini-i supports Pix and customized output protocols, and provides various commonly used interfaces RS485 and CAN, more comprehensively meeting customers' needs.

Industrial applications
Industrial applications
无人机定高/辅助降落
工业安全无小事，北醒激光雷达10k Hz 频率，可定制化的探测范围可有效实现各种工业环境中的安全距离探测并触发报警系统以减少事故率，目前北醒激光雷达已大批量应用于各类塔吊机设备中，实现安全距离预警。
车流统计
北醒激光雷达以其高帧率、高精度、 多量程等优异性能，可辅助智能交 通领域实现停车检测、摄像头触发 抓拍、车流量检测等功能。
工业安全距离预警
北醒激光雷达以其高帧率、高精度、 多量程等优异性能，可辅助智能交 通领域实现停车检测、摄像头触发 抓拍、车流量检测等功能。
USER CASE
USER CASE
体积检测
东方数科：如何助力农业实现数字化？
东方数科
AGV避障
迦智科技：在AMR应用中效果如何？
迦智科技
