Single-point..

Short Distance Series Product Model
TF-Luna
TF-Luna
Learn More 加入对比
Dimensions (L*W*H)35mm*21.25mm*13.5mm
InterfaceUART,I/O,I²C
Enclosure
Range0.2m~8m
Frame Rate1~250Hz
Power Consumption≤0.35W
Weight<5g
TFmini-S
TFmini-S
Learn More 加入对比
Dimensions (L*W*H)42mm*15mm*16mm
InterfaceUART,I/O,I²C
Enclosure
Range0.1m~12m
Frame Rate1~1000Hz
Power Consumption≤0.7W
Weight5g±0.3g
TFmini Plus
TFmini Plus
Learn More 加入对比
Dimensions (L*W*H)35mm*18.5mm*21mm
InterfaceUART,I/O,I²C
EnclosureIP65
Range0.1m~12m
Frame Rate1~1000Hz
Power Consumption550mW
Weight12g±1g
TFmini-i
TFmini-i
Learn More 加入对比
Dimensions (L*W*H)50mm*34mm*41mm
InterfaceCAN,RS-485
EnclosureIP65
Range0.1m~12m
Frame Rate1Hz~100Hz
Power Consumption≤0.8W @12V
Weight52g
Medium Distance Series Product Model
TF02-Pro
TF02-Pro
Learn More 加入对比
Dimensions (L*W*H)69mm*41.5mm*26mm
InterfaceUART,I/O,I²C
EnclosureIP65
Range0.1m~40m
Frame Rate1Hz~1000Hz
Power Consumption≤1W
Weight50g
TF02-i
TF02-i
Learn More 加入对比
Dimensions (L*W*H)69mm*40.5mm*31.5mm
InterfaceCAN,RS-485
EnclosureIP65
Range0.1m~40m
Frame Rate1Hz~100Hz
Power Consumption≤0.85W @12V
Weight60g
TF02-Pro-W
TF02-Pro-W
Learn More 加入对比
Dimensions (L*W*H)85mm*59mm*43mm
InterfaceUART,RS-485,I/O,I²C
EnclosureIP5X
Range0.1m~25m
Frame Rate1-1000Hz
Power Consumption≤2W
Weight90g@(UART、l²C)、92g@ (RS-485)
Long Distance Series Product Model
TF03
TF03
Learn More 加入对比
Dimensions (L*W*H)44mm*43mm*32mm
InterfaceCAN,4-20mA,RS-232,RS-485,UART
EnclosureIP67
Range0.1-180m
Frame Rate1Hz-1000Hz
Power Consumption≤1W
Weight89g±3g
TF350
TF350
Learn More 加入对比
Dimensions (L*W*H)78mm*67mm*40mm
InterfaceCAN,4-20mA,RS-232,RS-485,UART
EnclosureIP67
Range0.2m~350m
Frame Rate1Hz~1000Hz
Power Consumption≤1W
Weight222g±3g
Applications
UAV
ITS
Charging station & Video piles & Parking Meter Curb machine 收费站辅助分车 摄像头触发 Traffic Flow Detection 来车检测
Robot
Robot Fall Prevention Robot Obstacle Avoidance AGV / RGV / AMR Obstacle Avoidance Shuttle Obstacle Avoidance Smart Rail-Guided Vehicles Obstacle Avoidance Overhead Crane Collision Avoidance Forks Obstacle Avoidance
IoT
Interactive Entertainment Smart Home-Smart Dressing Mirror Smart Auxiliary Focus Application Street Light Switch Trigger Automatic Door Elevator Space Occupancy Detection Pedestrian Count Smart Trash Detection and Trigger 智慧公厕人流量及坑位状态检测
Level Sensor
Agricultural Vehicle Cargo Compartment Material Level Monitoring Material Level Detection Liquid Level Detection
Security
Industrial Safety Distance Warning Perimeter Security
Resource Center
Distributors
About Us
Promotions News About Us Contact recruitment
bw@benewake.com
EN
EN CN
Contact
Email
bw@benewake.com
Privacy Terms
Level Sensor

Benewake single-point LiDAR range covers 0.1m to 350m. It has the characteristics of small size, light weight, and various interfaces, which is convenient for development and integration, providing customised non-contact material level detection solutions.

Smart Agriculture
Scheme Introduction
Benewake single-point LiDAR range covers 0.1m to 350m. It has the characteristics of small size, light weight, and various interfaces, which is convenient for development and integration, providing customised non-contact material level detection solutions.
ScenarioAdvantages
Self-cleaning
Low false alarm rate
Simple configuration
Non-contact Detection
Easy to Install
ApplicationCases

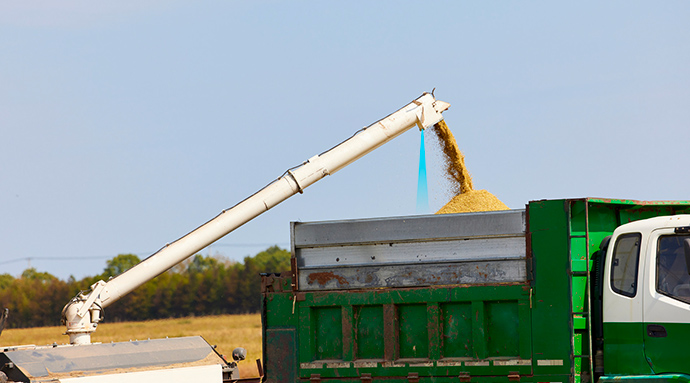

Agricultural Vehicle Cargo Compartment Material Level Monitoring
There are many compartments in automated agricultural machinery. LiDAR can be used to monitor crop overflow in real-time, reducing manual input and improving operational safety.

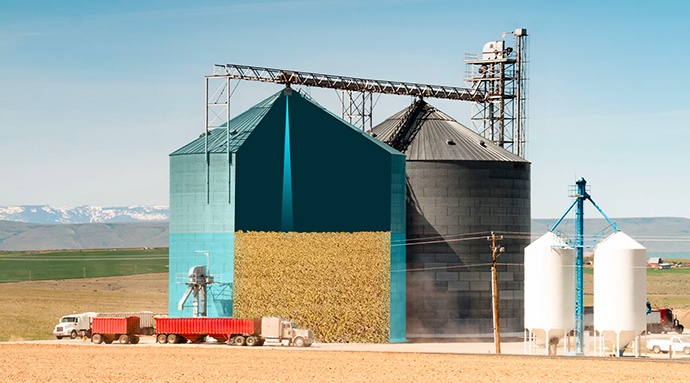

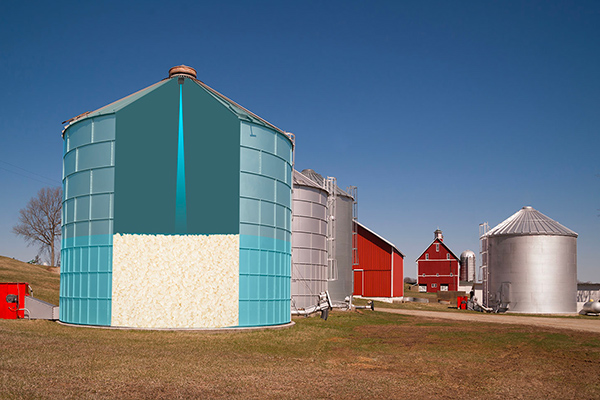

Material Level Detection
In agricultural settings, there are a large number of facilities such as silos and granaries. The existing material level detection methods are less automated, and more than 80% of them still choose to manually climbing to the top of the tank for obs
Industrial Detection
Scheme Introduction

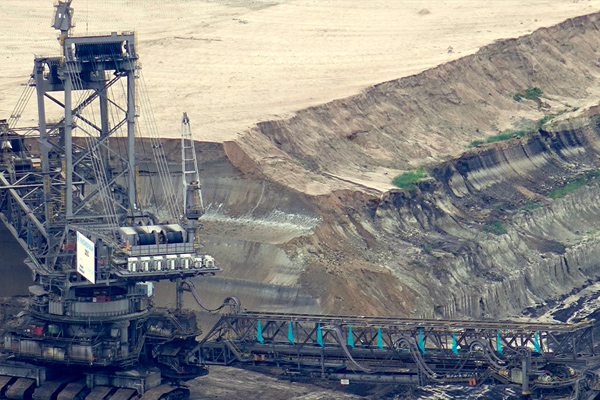

In industrial scenarios, there are many material storage facilities in the form of silos and other containers. Traditional material level detection is often carried out through manual observation or ruler measurement, which has low automation, low efficiency, and high personal safety risks. By installing Benewake LiDAR on the top of the storage tank, it can be used to detect the height and inventory of the material level. The high cost-effective Benewake LiDAR can assist enterprises in safe and efficient production.
ScenarioAdvantages
Self-cleaning
Low false alarm rate
Simple configuration
Non-contact Detection
Easy to Install
ApplicationCases

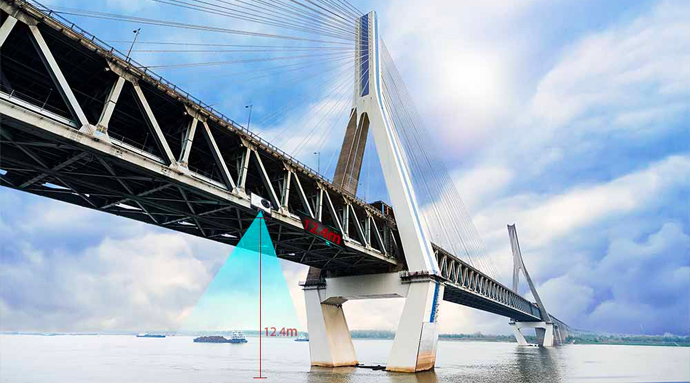

Liquid Level Detection
RDS01 LiDAR is suitable for various complex working environments: hydrological detection in river, lake, channel and other application scenarios. More robust in abnormal situations and complex environments, the RDS01 radar has better penetration of s
