Short Distance Series Product Model
TF-Luna
TF-Luna
Learn More 加入对比
Dimensions (L*W*H)35mm*21.25mm*13.5mm
InterfaceUART,I/O,I²C
Enclosure
Range0.2m~8m
Frame Rate1~250Hz
Power Consumption≤0.35W
Weight<5g
TFmini-S
TFmini-S
Learn More 加入对比
Dimensions (L*W*H)42mm*15mm*16mm
InterfaceUART,I/O,I²C
Enclosure
Range0.1m~12m
Frame Rate1~1000Hz
Power Consumption≤0.7W
Weight5g±0.3g
TFmini Plus
TFmini Plus
Learn More 加入对比
Dimensions (L*W*H)35mm*18.5mm*21mm
InterfaceUART,I/O,I²C
EnclosureIP65
Range0.1m~12m
Frame Rate1~1000Hz
Power Consumption550mW
Weight12g±1g
TFmini-i
TFmini-i
Learn More 加入对比
Dimensions (L*W*H)50mm*34mm*41mm
InterfaceCAN,RS-485
EnclosureIP65
Range0.1m~12m
Frame Rate1Hz~100Hz
Power Consumption≤0.8W @12V
Weight52g
Medium Distance Series Product Model
TF02-Pro
TF02-Pro
Learn More 加入对比
Dimensions (L*W*H)69mm*41.5mm*26mm
InterfaceUART,I/O,I²C
EnclosureIP65
Range0.1m~40m
Frame Rate1Hz~1000Hz
Power Consumption≤1W
Weight50g
TF02-i
TF02-i
Learn More 加入对比
Dimensions (L*W*H)69mm*40.5mm*31.5mm
InterfaceCAN,RS-485
EnclosureIP65
Range0.1m~40m
Frame Rate1Hz~100Hz
Power Consumption≤0.85W @12V
Weight60g
TF02-Pro-W
TF02-Pro-W
Learn More 加入对比
Dimensions (L*W*H)85mm*59mm*43mm
InterfaceUART,RS-485,I/O,I²C
EnclosureIP5X
Range0.1m~25m
Frame Rate1-1000Hz
Power Consumption≤2W
Weight90g@(UART、l²C)、92g@ (RS-485)
Long Distance Series Product Model
TF03
TF03
Learn More 加入对比
Dimensions (L*W*H)44mm*43mm*32mm
InterfaceCAN,4-20mA,RS-232,RS-485,UART
EnclosureIP67
Range0.1-180m
Frame Rate1Hz-1000Hz
Power Consumption≤1W
Weight89g±3g
TF350
TF350
Learn More 加入对比
Dimensions (L*W*H)78mm*67mm*40mm
InterfaceCAN,4-20mA,RS-232,RS-485,UART
EnclosureIP67
Range0.2m~350m
Frame Rate1Hz~1000Hz
Power Consumption≤1W
Weight222g±3g
Applications
UAV
ITS
Charging station & Video piles & Parking Meter Curb machine 收费站辅助分车 摄像头触发 Traffic Flow Detection 来车检测
Robot
Robot Fall Prevention Robot Obstacle Avoidance AGV / RGV / AMR Obstacle Avoidance Shuttle Obstacle Avoidance Smart Rail-Guided Vehicles Obstacle Avoidance Overhead Crane Collision Avoidance Forks Obstacle Avoidance
IoT
Interactive Entertainment Smart Home-Smart Dressing Mirror Smart Auxiliary Focus Application Street Light Switch Trigger Automatic Door Elevator Space Occupancy Detection Pedestrian Count Smart Trash Detection and Trigger 智慧公厕人流量及坑位状态检测
Level Sensor
Agricultural Vehicle Cargo Compartment Material Level Monitoring Material Level Detection Liquid Level Detection
Security
Industrial Safety Distance Warning Perimeter Security
Resource Center
Distributors
About Us
Promotions News About Us Contact recruitment
bw@benewake.com
EN
EN CN
Contact
Email
bw@benewake.com
Privacy Terms
TF350
Ultra Long RangeSingle-point LiDAR
Strong Resistance To Ambient Light
High Frequency
IP65/IP67
Long Range
Dedicated FoV
Online Message Download documents

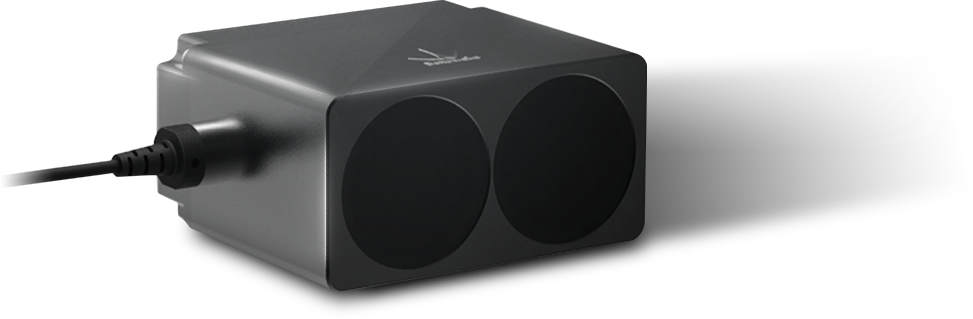

TF350
Ultra Long Range Single-point LiDAR
TF350 is an industrial-grade, long-range, high-frequency LiDAR with a detection range of up to 350m. It integrates algorithms specifically designed for bright light environment and rain/fog compensation, supporting a variety of industrial-grade communication interfaces, IP67 structure making it suitable in a variety of indoor and outdoor applications. In addition, TF350 has multiple measurement modes integrated internally, and various parameters are available for customers to choose their own configurations to meet different ranging requirements in various scenarios. TF350 has advantages of long detection range, easy installation, high cost-effectiveness, and high integration. Its optical system is more efficient, and its circuit design is optimized.


Play Video
01
High protection level, powerful performance
The protection level of TF350 is IP67, with good dust and water resistance. The aluminum alloy shell and  infrared high-transparency glass receive window makes it more durable. With a solid-state design, compared to rotating mechanical radars, it has more stable performance and a longer lifespan. Whether indoors or outdoors, all aspects of its performance are excellent.
Max 350m
Ultra-long range
0.35°
Small FoV
Max7KHz
High frame rate
100KLux
Strong Ambient Light
02
Multiple modes
Multiple parameters, Customer's choice

To meet the different needs of different application scenarios, TF350 supports multiple types of interfaces, integerates multiple extension functions, and supports user-defined configurations.

Industrial applications
Industrial applications
无人机定高/辅助降落
工业安全无小事，北醒激光雷达10k Hz 频率，可定制化的探测范围可有效实现各种工业环境中的安全距离探测并触发报警系统以减少事故率，目前北醒激光雷达已大批量应用于各类塔吊机设备中，实现安全距离预警。
车流统计
北醒激光雷达以其高帧率、高精度、 多量程等优异性能，可辅助智能交 通领域实现停车检测、摄像头触发 抓拍、车流量检测等功能。
工业安全距离预警
北醒激光雷达以其高帧率、高精度、 多量程等优异性能，可辅助智能交 通领域实现停车检测、摄像头触发 抓拍、车流量检测等功能。
