UAV
Drones equipped with Benewake LiDar can achieve tasks of attitude hold and obstacle avoidance, which greatly improves the flight safety and stability of the UAV.
小体积
低功耗
低成本
Project Brief
Vehicle-assisted take-off and Flight Vehicle Altitude Hold Mode
With the stable ranging performance and ultra-high response speed of Benewake single-point LiDAR, the aircraft can obtain instant ground height information during takeoff and landing, and achieve smooth takeoff and landing. At the same time, Benewake
TechnologyAdvantages
Small size, installed easily; light weight, helping improve flight time.
High frequency, long range and high precision. Suitable for all types of aircraft to achieve assisted take-off and landing and altitude fixing functions.
Reliable data. Stable range measurement in strong ambient light and with different reflectivity backgrounds.
Built-in light source, it can be used normally in non-illuminated environments.
Compatible
PX4、Ardupilot、iNaV、BetaFlight平台支持以下飞控硬件：
Pixhawk1
UART、IIC、I/O、UART
Pixhawk Cube Series
UART、II2C、I/O、UART
Pixhawk Flight Controllers from Holybro
UART、IIC、I/O
CUAV Series
RS-485、CAN
Beagle Bone Blue
0.1m-180m、UART/CAN
RecommendedScenarios
Logistics UAV
Formation performance UAV
Multi-rotor UAV
Recommended Product

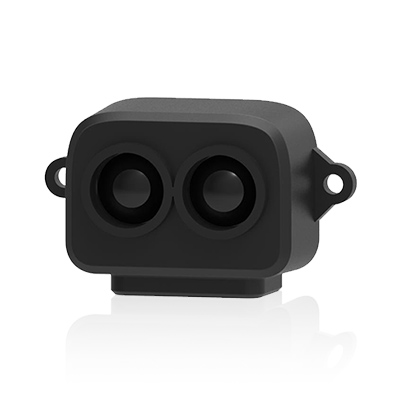

TF-Luna
Operating Range0.2m~8m
Accuracy0.1%
Communication InterfaceRS-485、CAN
Enclosure ratingIP65
Dimensions (L*W*H)35mm*18.5mm*21mm
Learn More
TFmini-S
Operating Range0.1m~12m
Accuracy0.1%
Communication InterfaceRS-485、CAN
Enclosure ratingIP65
Dimensions (L*W*H)35mm*18.5mm*21mm
Learn More
