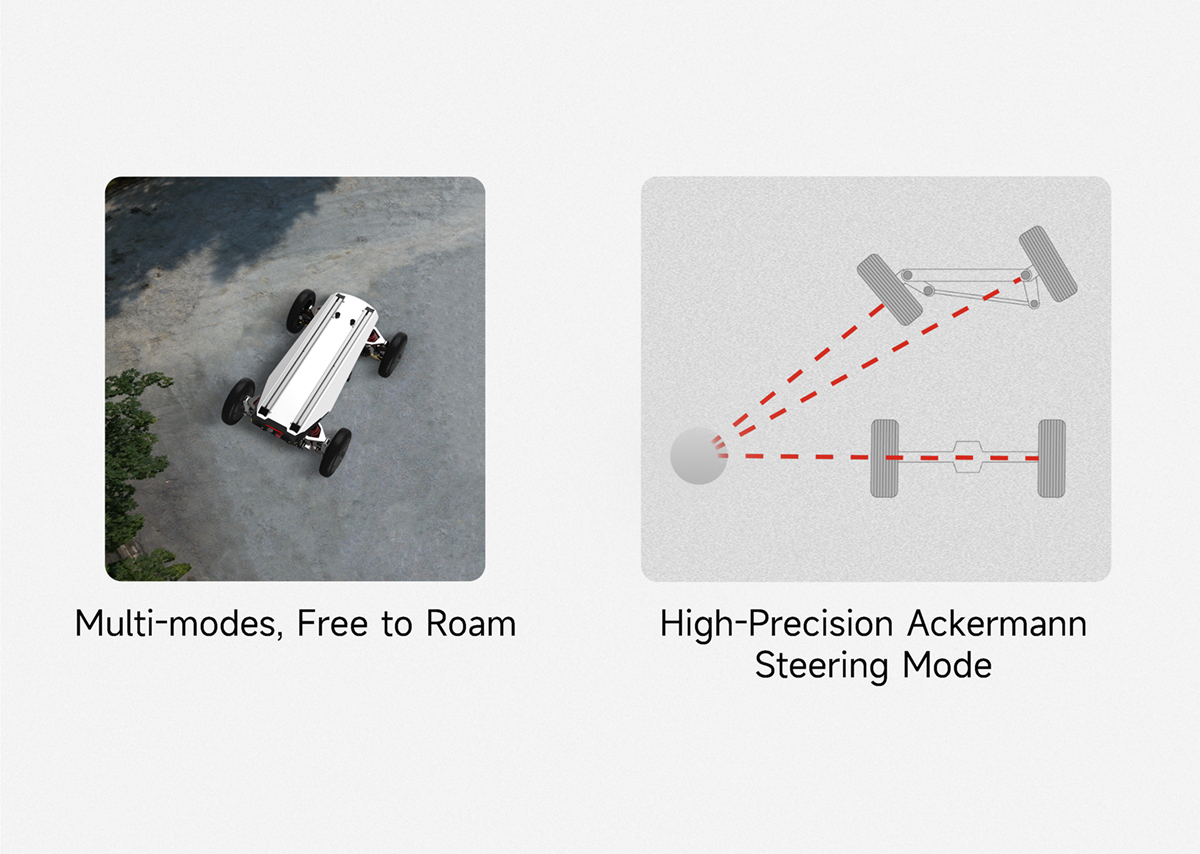

All-Scenario Ackermann Steering

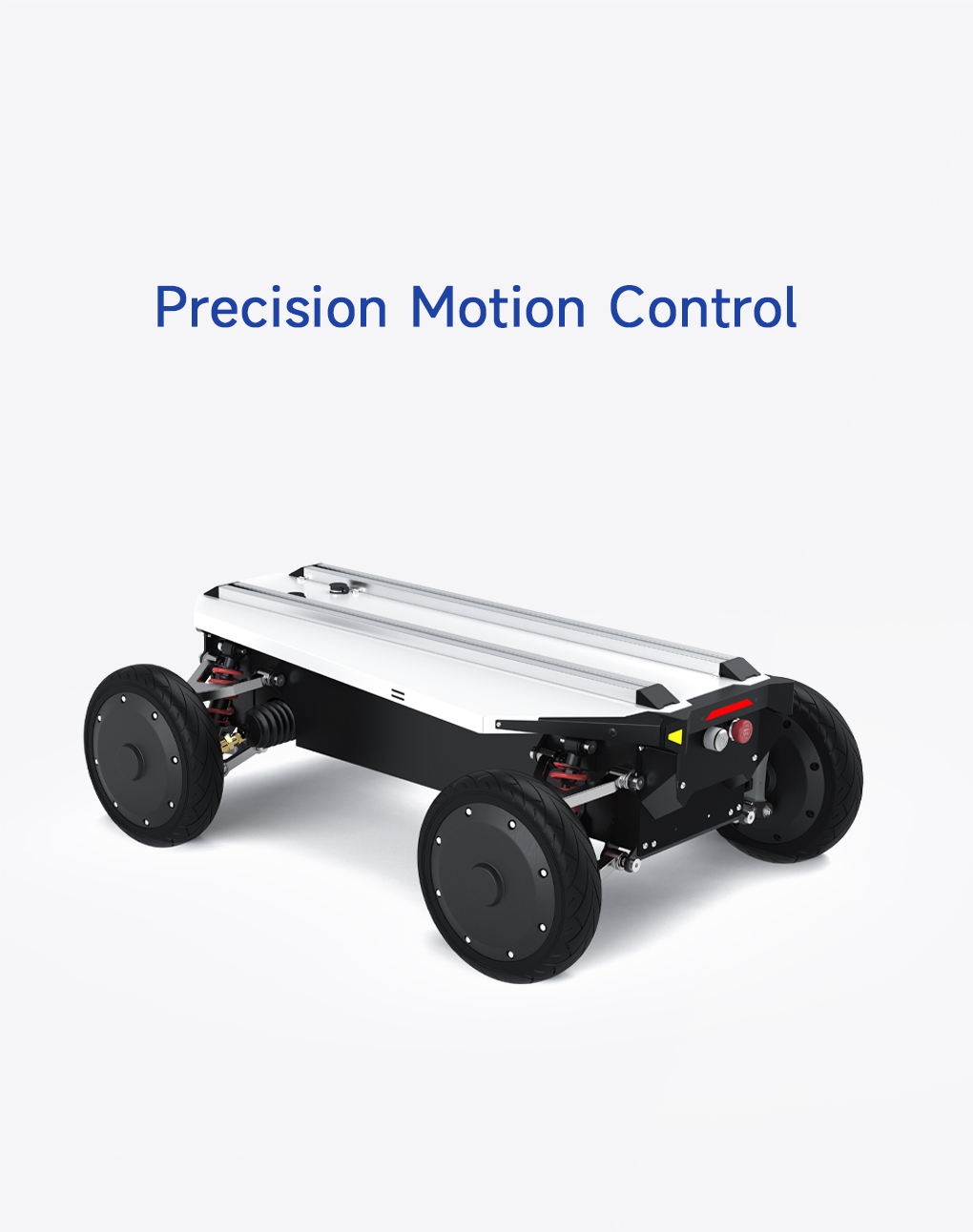

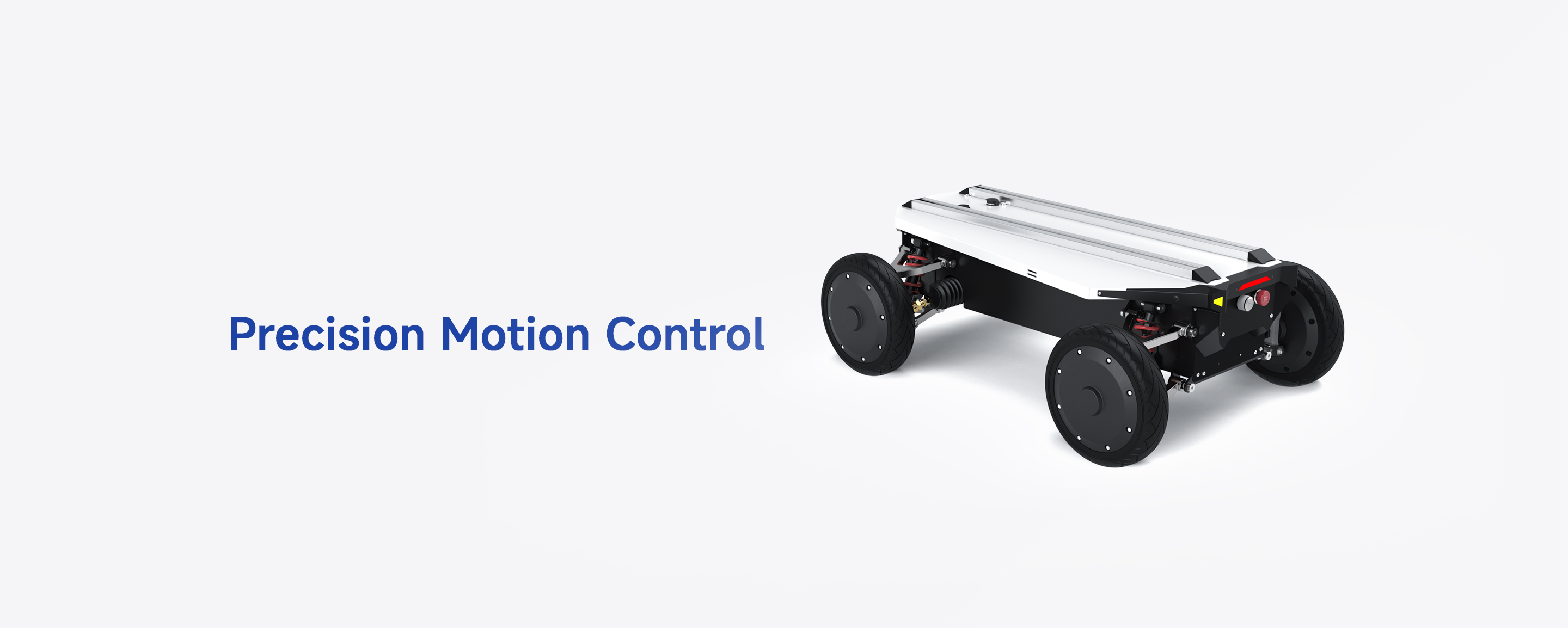

The chassis adopts an all-terrain independent suspension design with excellent shock absorption performance. Combined with millimeter-level motion control precision, it delivers smoother and more responsive dynamic performance.


Upfront Dynamic Planning Algorithm

Equipped with predictive modeling and dynamic optimization algorithms, the chassis plans dynamic processes in advance, fine-tunes parameters, and supports fast response and agile mobility for Ackermann modes.


High-Strength Lightweight All-Terrain UGVs

Combine real-time precision motion control with a reinforced lightweight body to maximize structural strength. Navigate complex, multi-scenario environments with ease and confidence.

  • Obstacle Height：50mm(unladen)/50mm(laden)
  • Max Climbing Angle： (unladen)/10°(laden)
  • Max Speed：9.7km/h
  • Braking Method：Motor Brake
  • IP Rating：IP44
  • Payload(Level Ground)：50kg

Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.

  • 1.png

    Application Safety

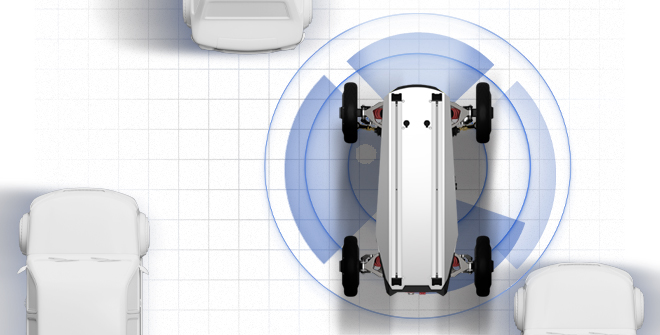

    Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

  • 1.png

    Operational Safety

    Combine electronic differential control with flexible motion management to deliver both stability and agility, enabling more reliable performance across industry applications.

  • ba4eb03488c386c4df9dc8e97e3936c0.png

    Electrical Safety

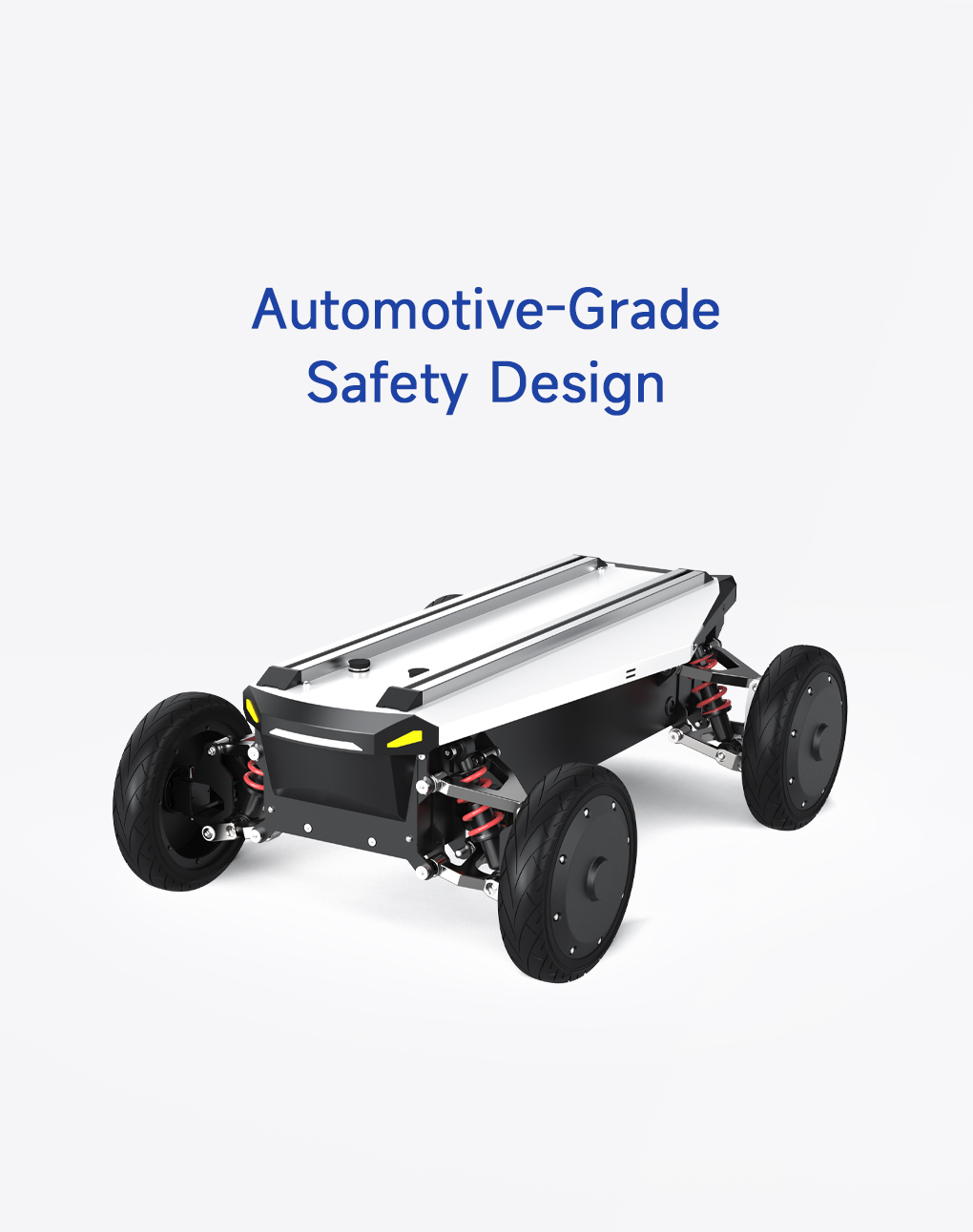

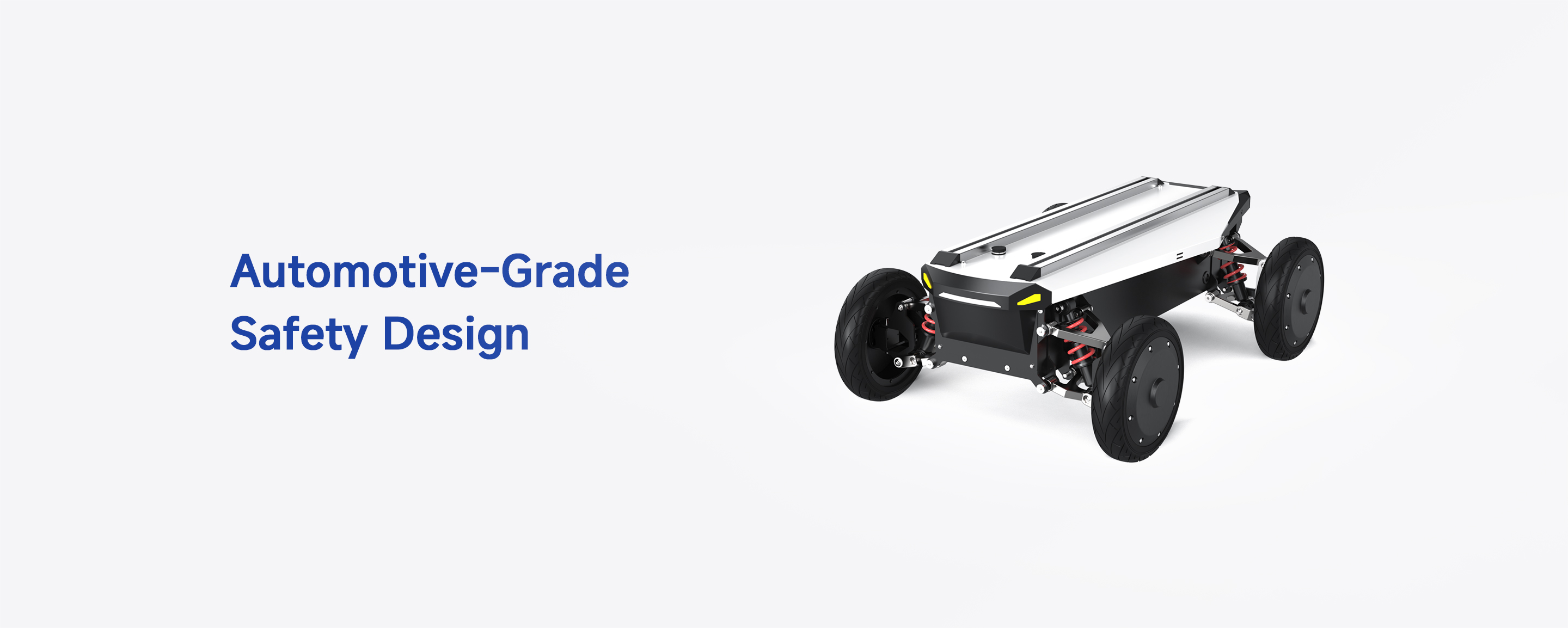

    Adopt automotive-grade battery protection designs to withstand harsh environments, improve durability, and support effective application development.

  • 6c1d9688e726771a87fc3bc971e8275b.png

    Control Safety

    Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.

No record
No record

Multi-Scenario Operating Capability

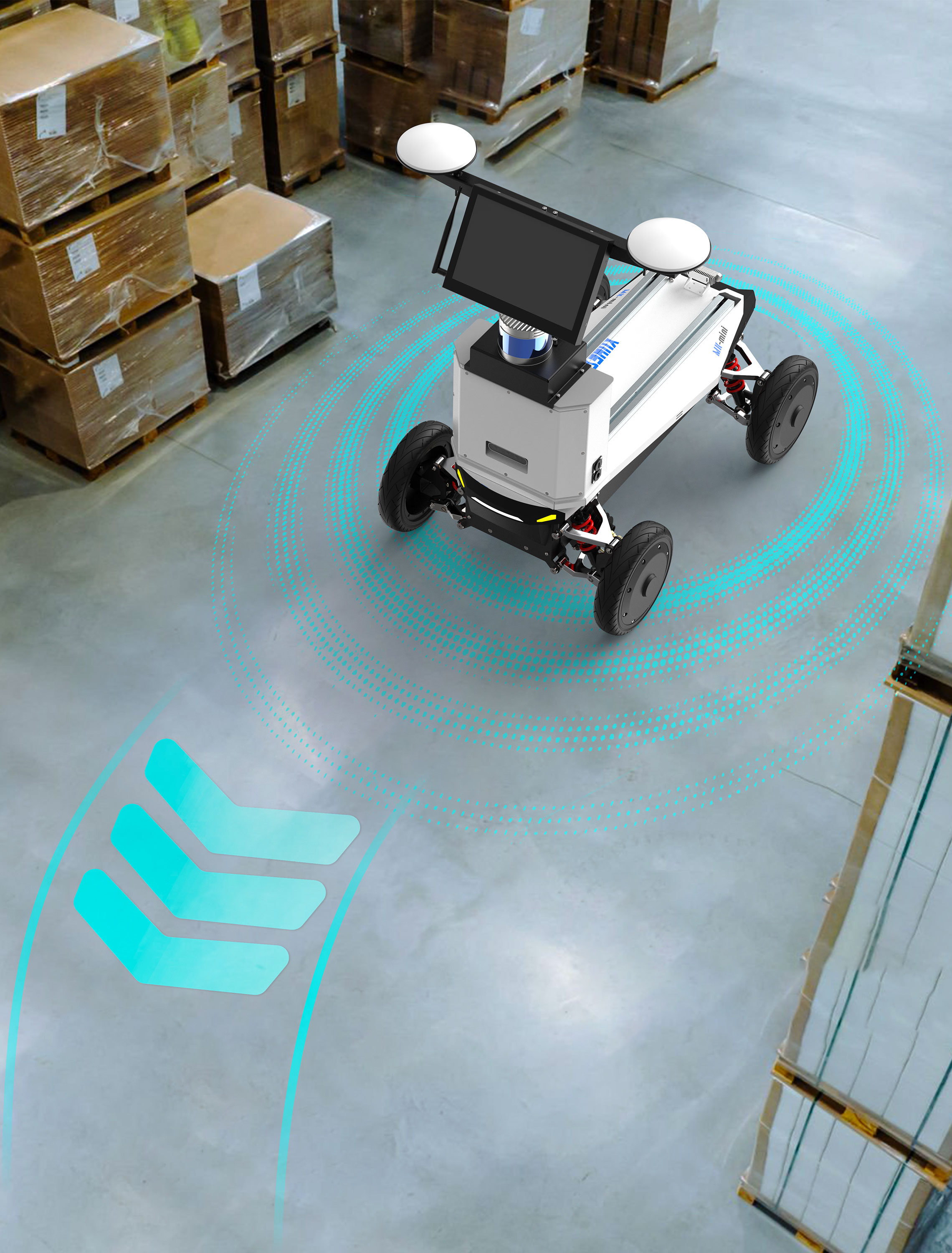

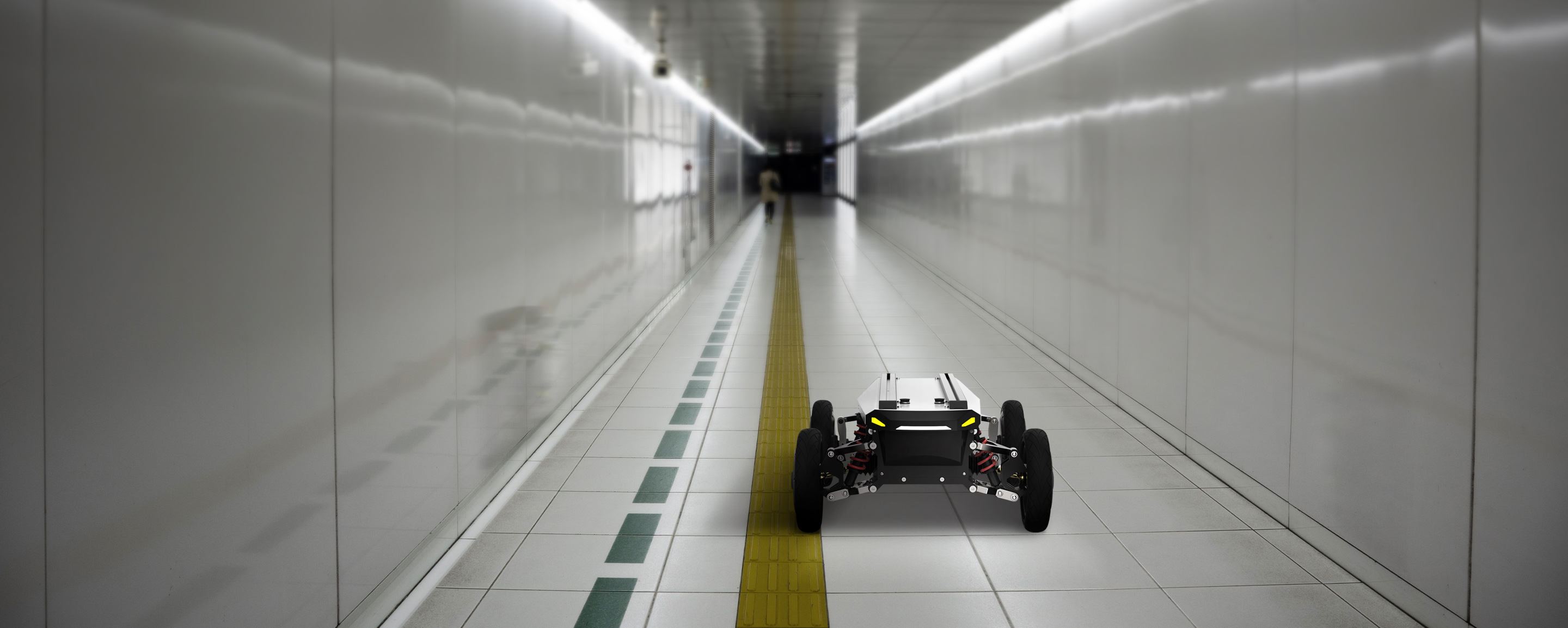

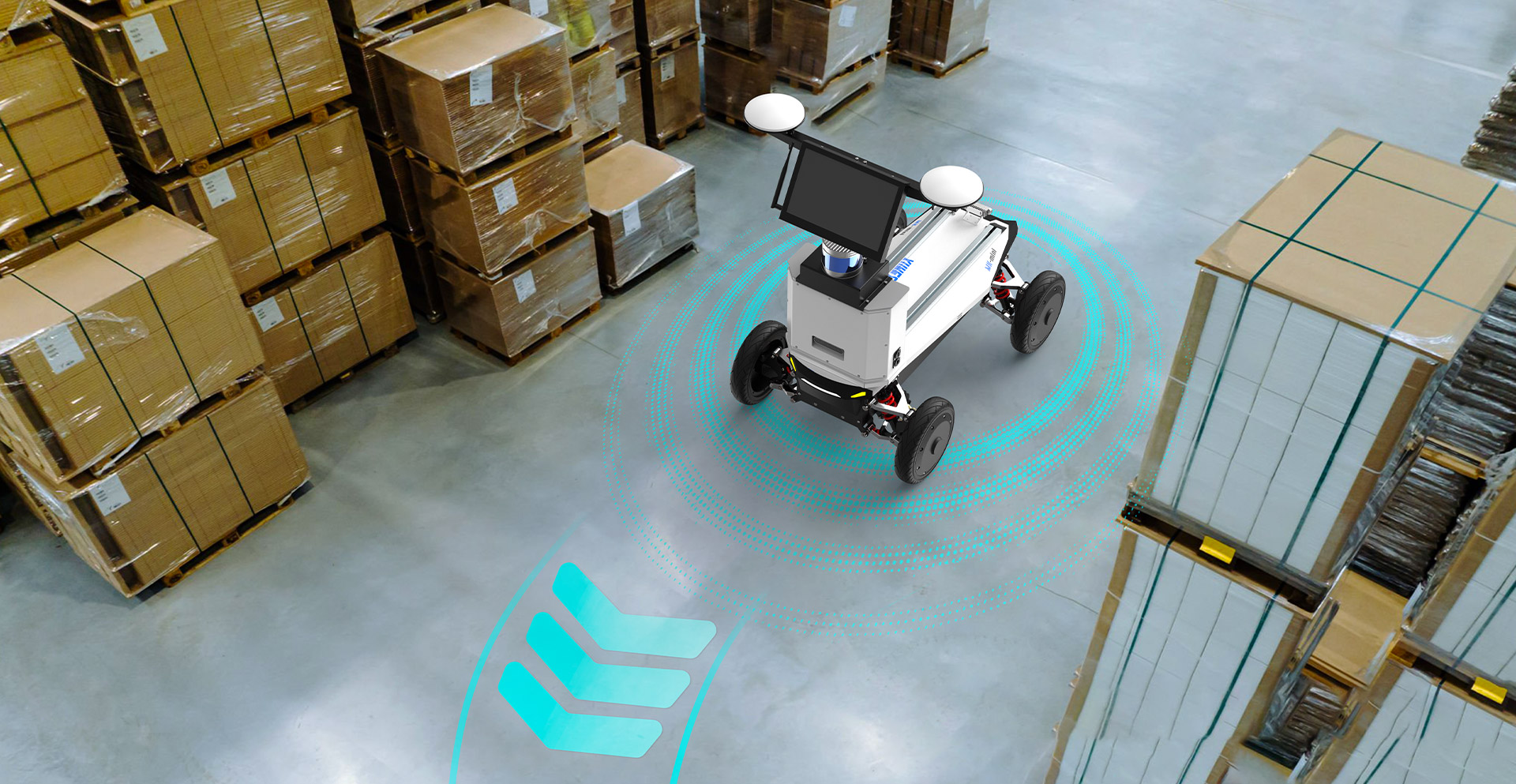

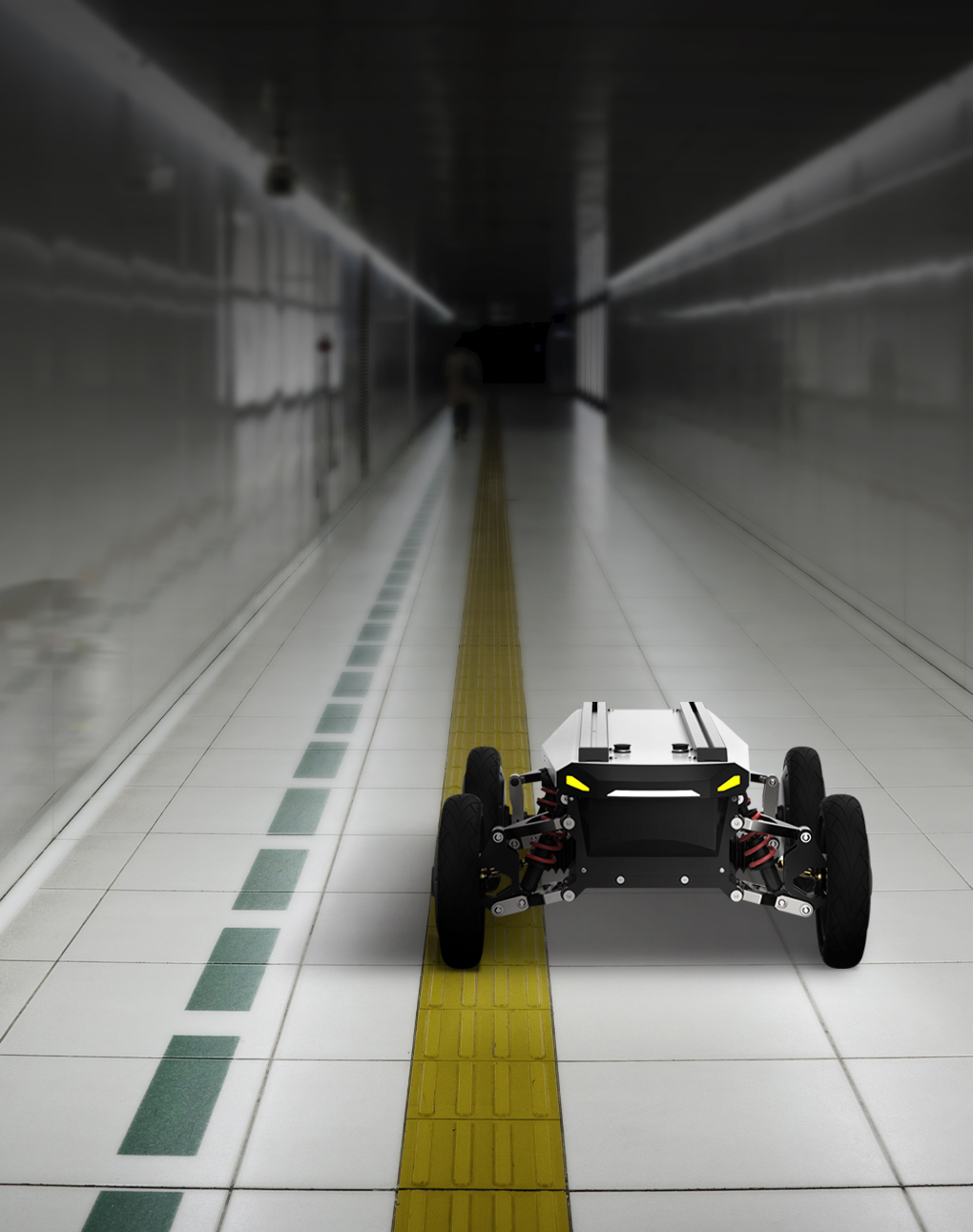

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

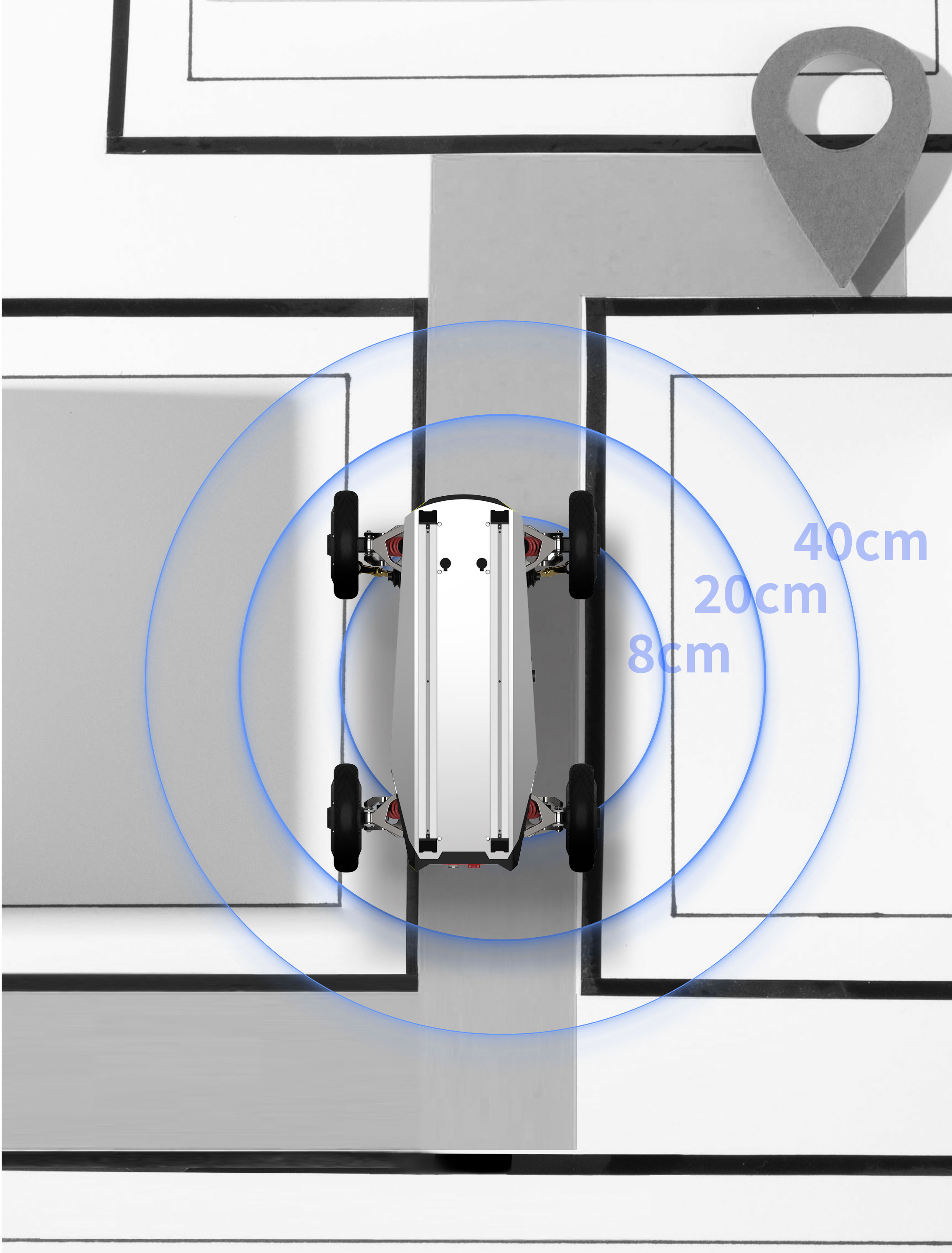

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

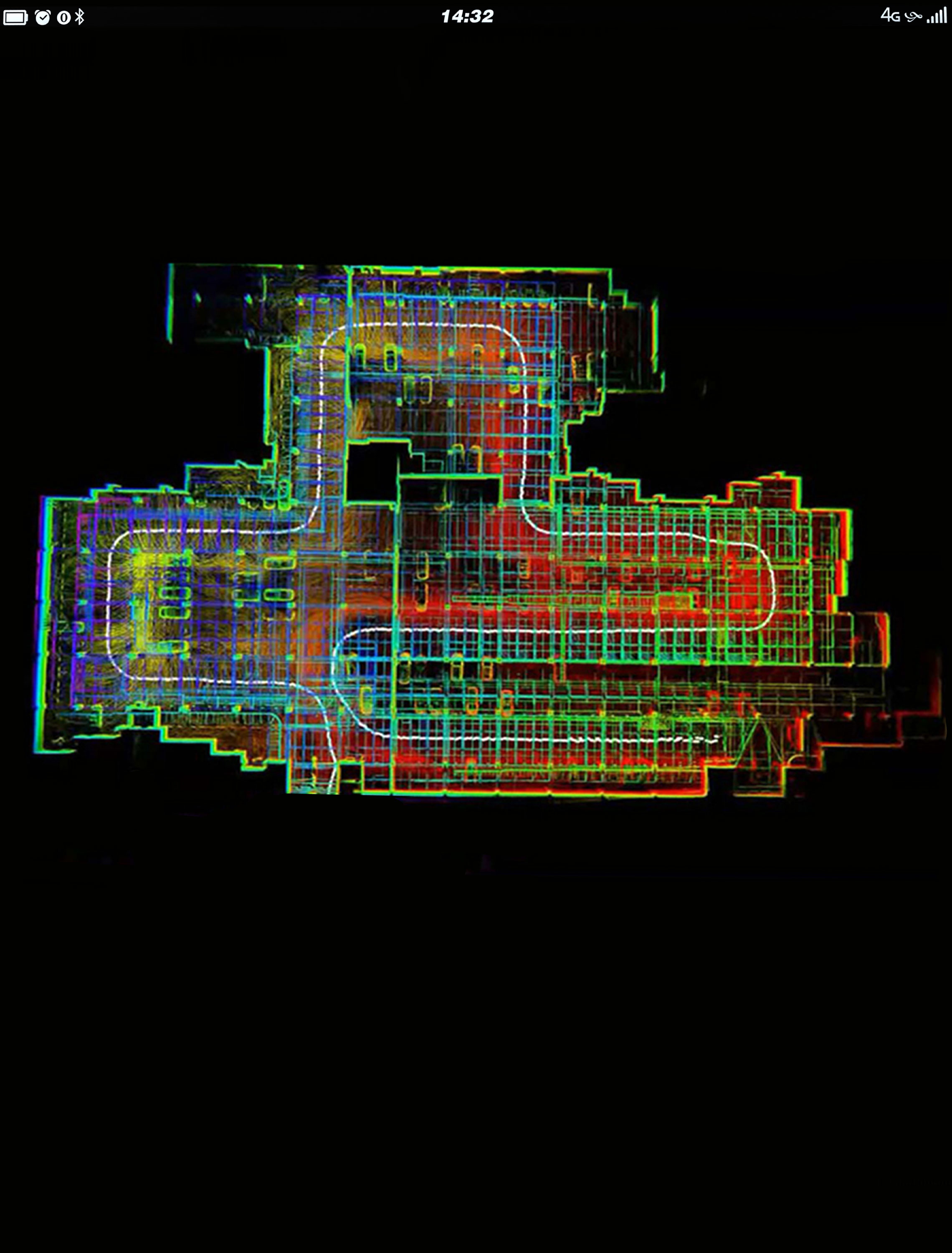

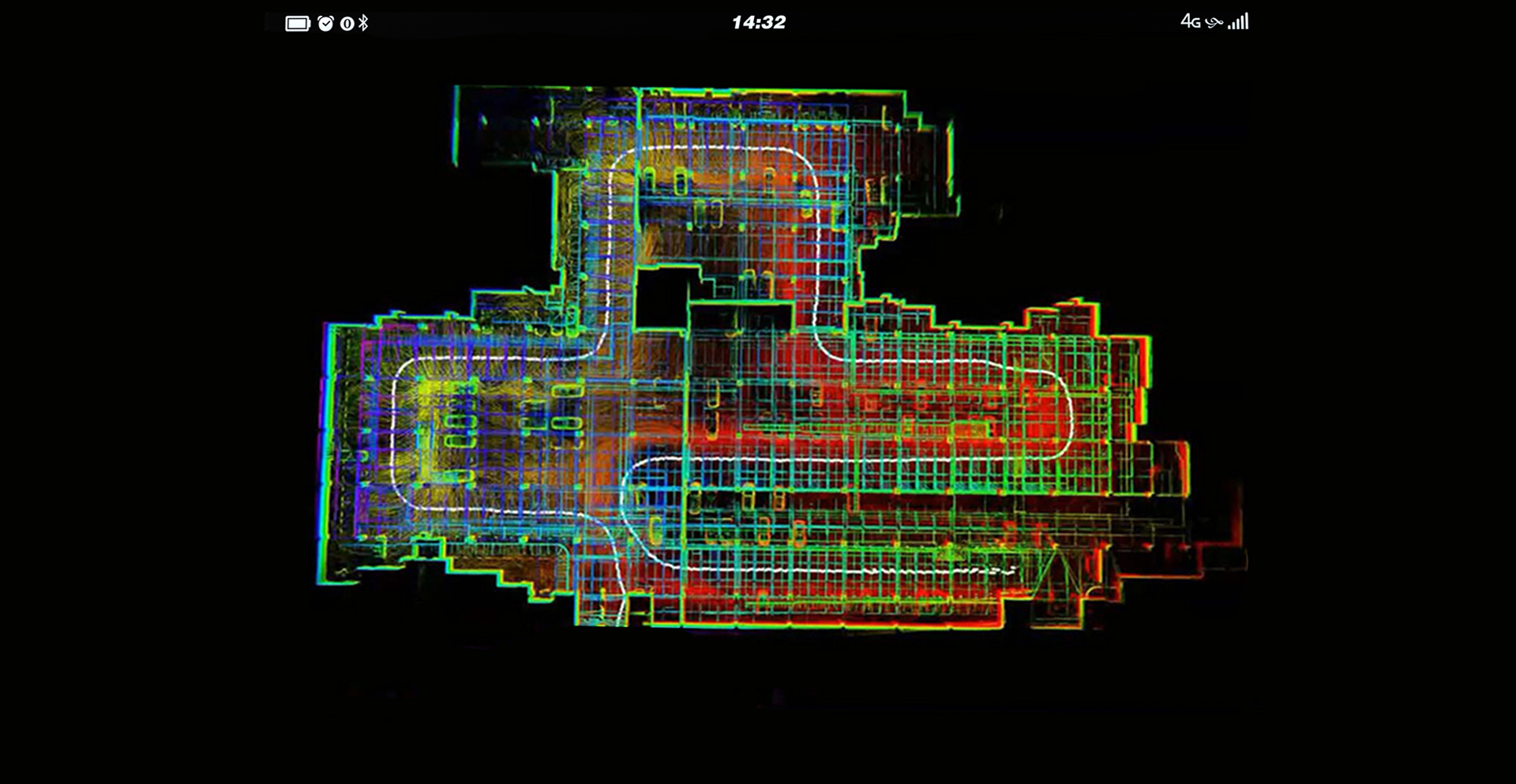

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

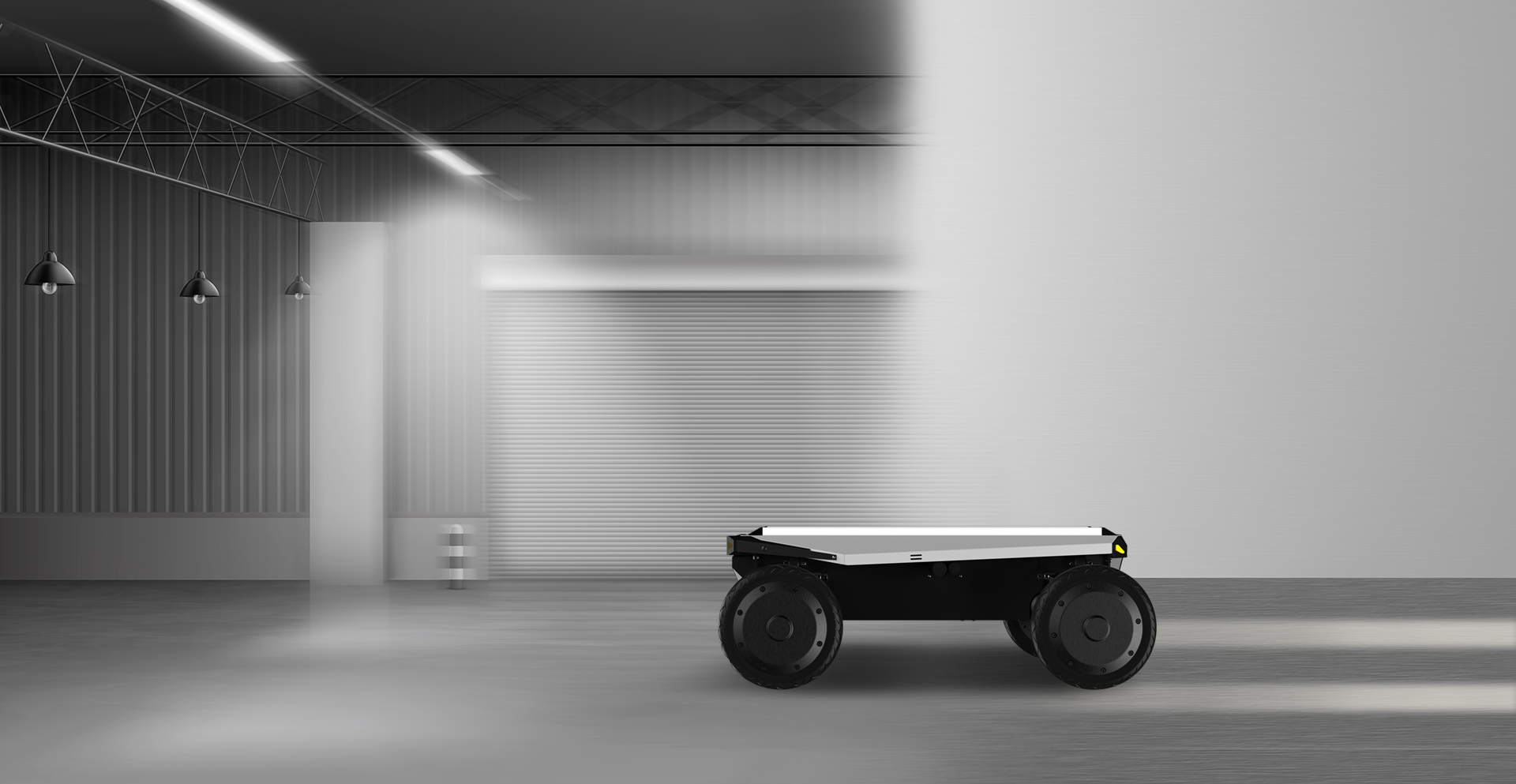

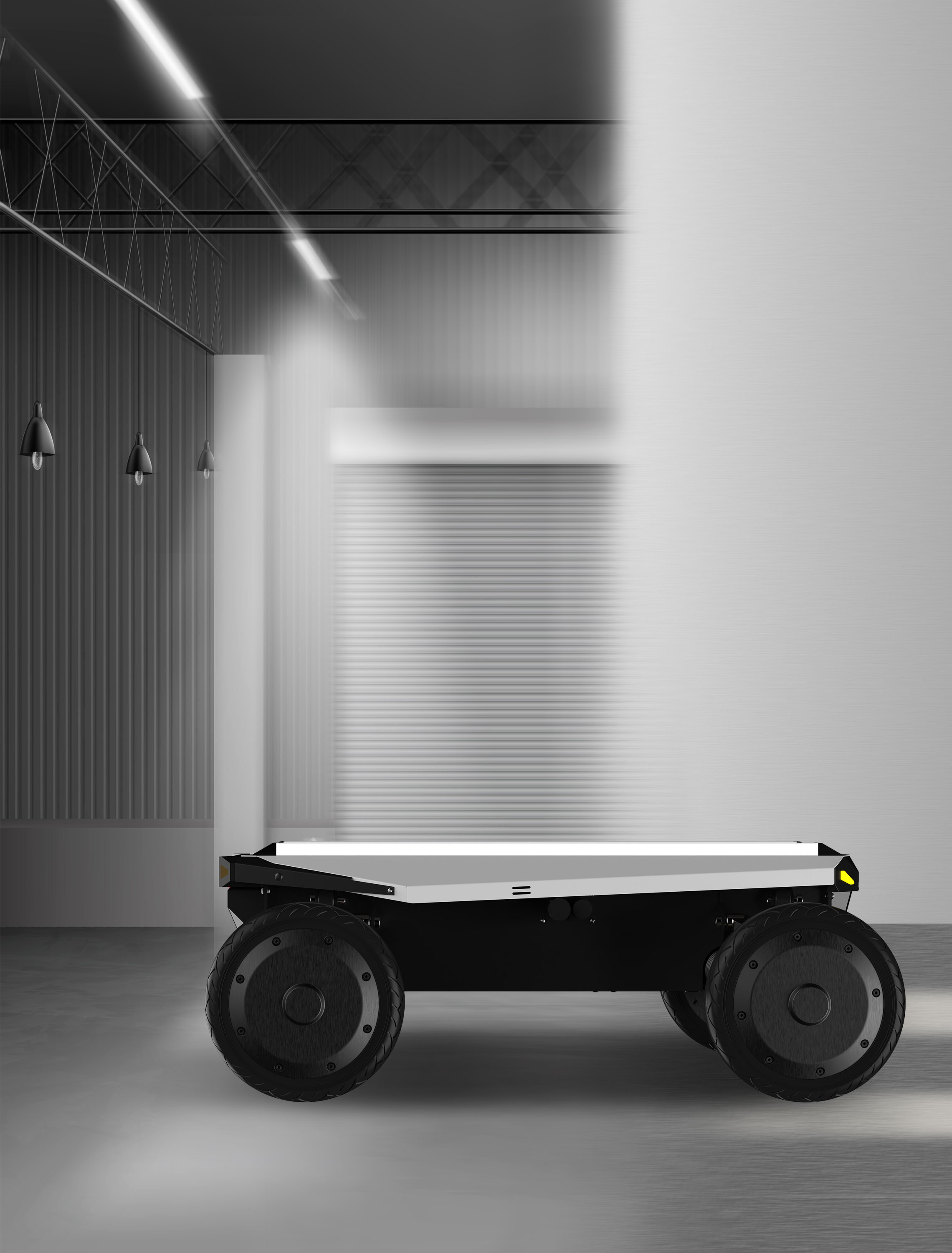

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-Industry Application Capability

  • Energy

    Energy

  • Manufacturing

    Manufacturing

  • Agriculture

    Agriculture

  • Healthcare

    Healthcare

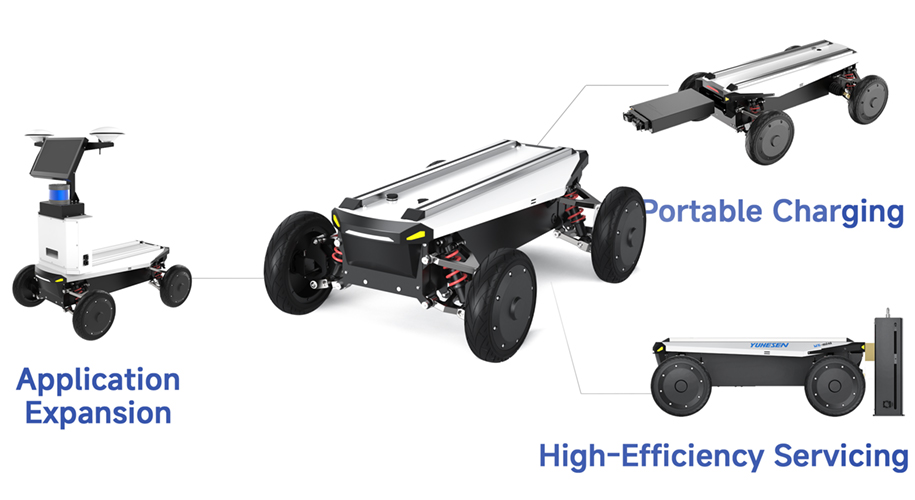

Supporting the integration of diverse modular applications.

We anticipate collaborating with you to explore the future of the industry.

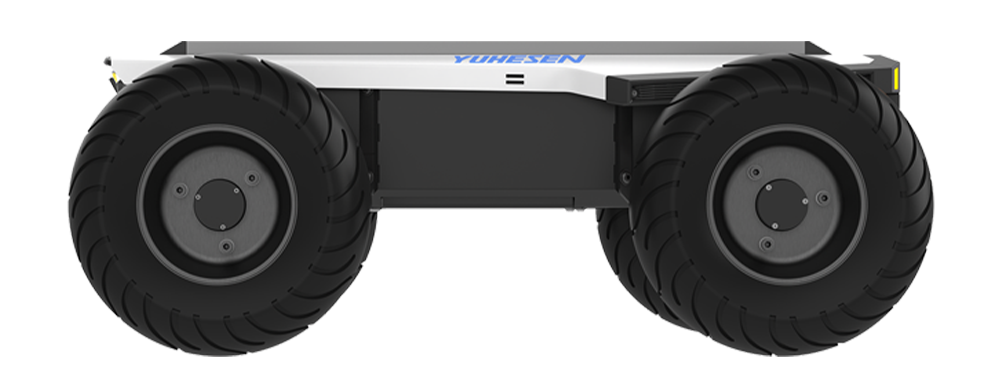

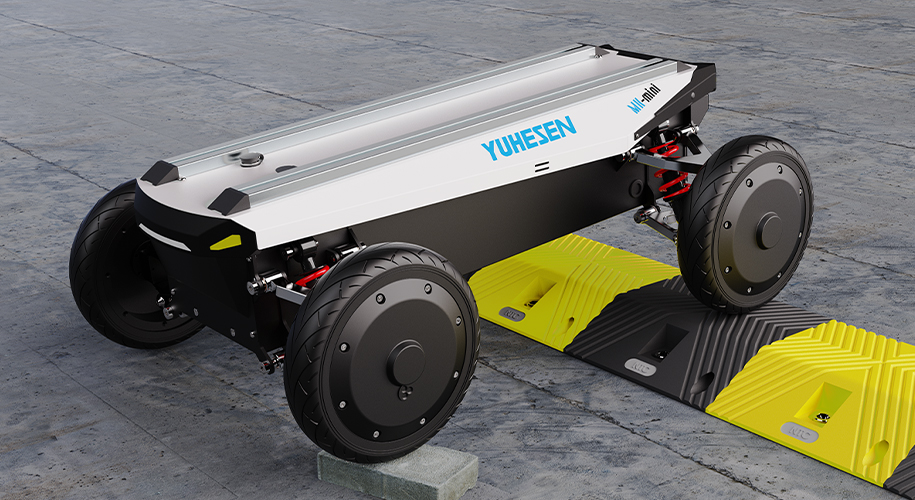

MK-mini

  • Size：900mm*600mm*310mm
  • Weight：55kg
  • Drive Form：Front Ackermann Steering, back Dual Rear Hub Motor Drive
  • Suspension：Double Wishbone Independent Suspension
  • Ground Clearance：93mm
  • Wheelbase：600mm
  • Wheel Track：518mm
  • Tire Diameter：240mm
  • Wheel Hub Motor：350W*2
  • Battery：48V/20Ah 48V/40Ah(optional) LiFePO₄ Battery
  • Charging Time：2-3h
  • Charging Adapter：48V/10A
  • Power Supply：12V/15A 24V/15A 48V/10A
  • Braking Method：Motor Brake
  • Parking Method：Motor Parking Brake
  • Payload(Level Ground)：50kg
  • Max Speed：9.7km/h
  • Wading Depth：100mm
  • Operating Range：60km(unladen) 40km(laden)
  • Max Climbing Angle： (unladen)/10°(laden)
  • Obstacle Span：160mm(unladen) 140mm(laden)
  • Obstacle Height：50mm(unladen) 50mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：Navigation peripherals/Open-source accessories/Depth camera/Autonomous charging dock/Robotic arm/LiDAR module
  • Support Services ：Standard SDK packages / Base hardware secondary-development STP files / Base ROS packages / Navigation protocol documentation / One-to-one technical support
  • Configuration Notes ：Certain product features support modular upgrades. Actual configurations may differ from website descriptions; the latest official product specifications shall prevail

MK-mid

  • Size：920mm*740mm*350mm
  • Weight：71kg
  • Drive Form：Front Ackermann Steering, back Dual Rear Hub Motor Drive
  • Suspension：Double Wishbone Independent Suspension
  • Ground Clearance：150mm
  • Wheelbase：600mm
  • Wheel Track：600mm
  • Tire Diameter：324mm
  • Wheel Hub Motor：400W*2
  • Battery：48V/18Ah LiFePO₄ Battery
  • Charging Time：2-3h
  • Charging Adapter：48V/10A
  • Power Supply：12V/15A 24V/15A 48V/10A
  • Braking Method：Motor Brake
  • Parking Method：Motor Parking Brake+Electromagnetic Fail-Safe Holding Brake
  • Payload(Level Ground)：80kg
  • Max Speed：9.7km/h
  • Wading Depth：120mm
  • Operating Range：35km(unladen) 25km(laden)
  • Max Climbing Angle： (unladen)/10°(laden)
  • Obstacle Span：230mm(unladen) 180mm(laden)
  • Obstacle Height：90mm(unladen) 50mm(laden)
  • IP Rating：IP42
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：Navigation peripherals/Open-source accessories/Depth camera/Autonomous charging dock/Robotic arm/LiDAR module
  • Support Services ：Standard SDK packages / Base hardware secondary-development STP files / Base ROS packages / Navigation protocol documentation / One-to-one technical support
  • Configuration Notes ：Certain product features support modular upgrades. Actual configurations may differ from website descriptions; the latest official product specifications shall prevail
