NV-magic

Autonomous navigation kit for industrial, logistics, inspection, composite operation and embodied intelligence applications. With high performance, high integration and high reliability.


Multi-scenario Fusion Navigation Algorithm

Multi-source sensor data and diverse algorithm models are fused to provide comprehensive map-management capabilities. Each navigation mode is modularized into graphical function blocks, enabling rapid deployment and seamless implementation across multiple scenarios.


Multi-sensor Fusion Safety Protection

  • Extra-Long Tunnel：1-10km
  • Open Outdoor Area：3.5 Hectares
  • Low-Texture Indoor：5000 m²
  • 3D Mapping Coverage：2.4 million m²
  • Multi-Sensor Fusion：3D
  • Nav Modes：4 Types
  • Mobile Nav Speed：0-2.7m/s
  • Positioning Accuracy：±5cm
  • Chassis Motion ：4 Types

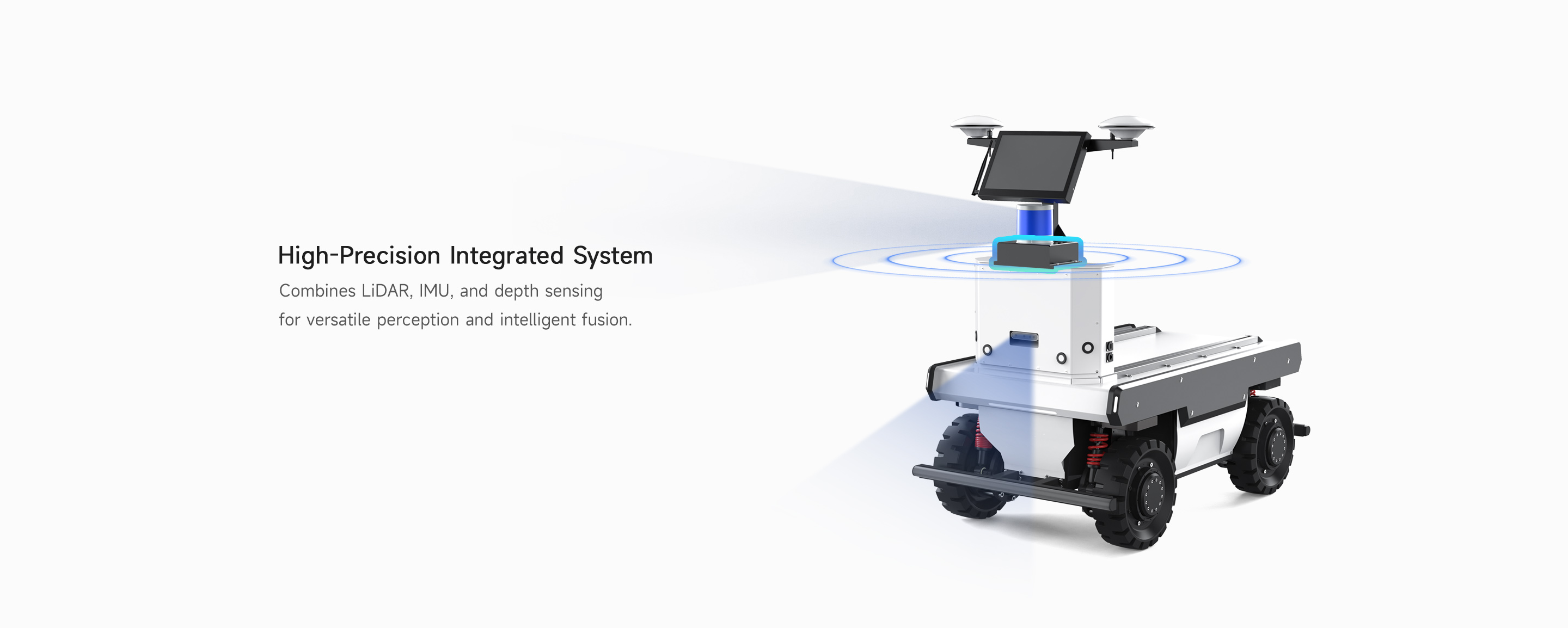

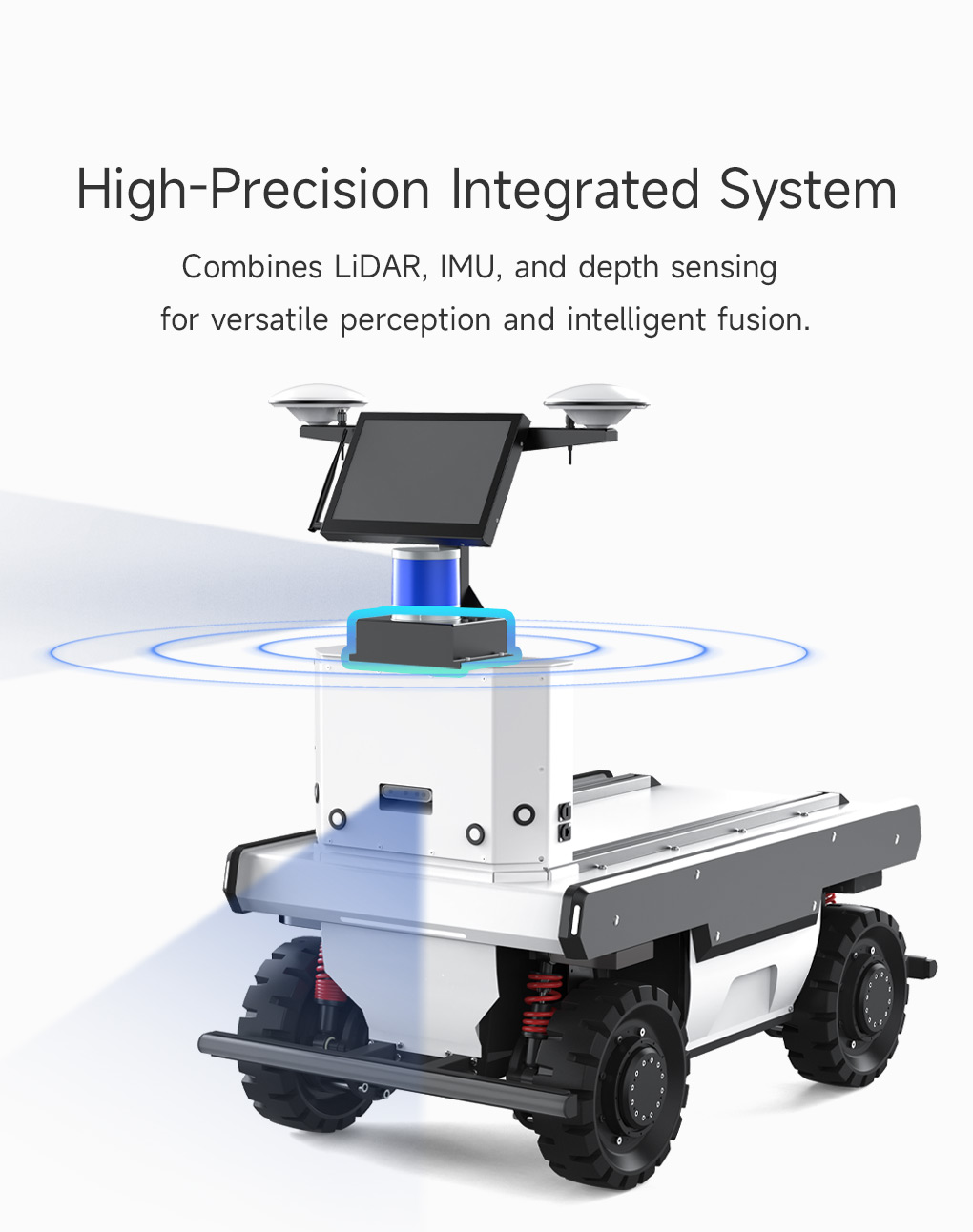

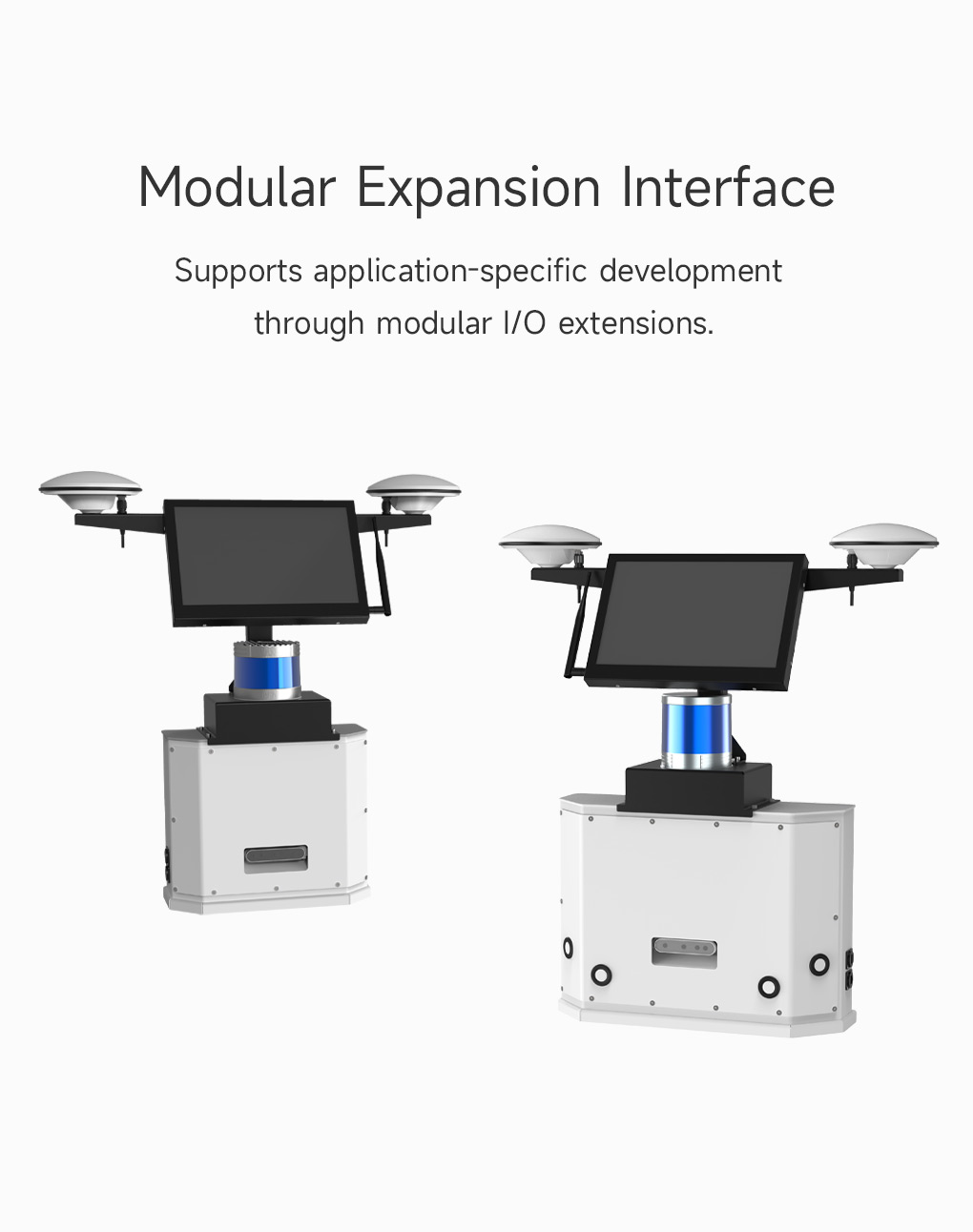

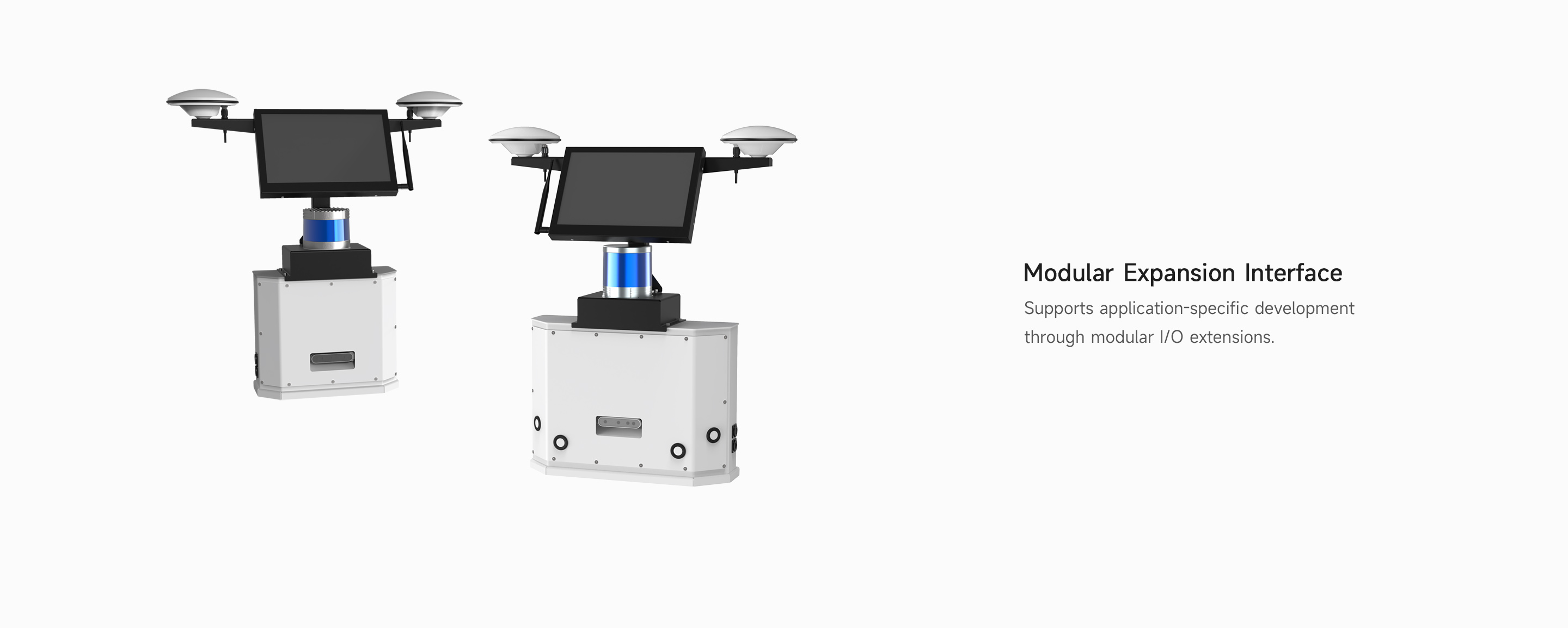

Modular hardware integration enables streamlined industrial deployment. standardized hardware combined with the Magic Navigation Toolchain meets testing and development needs, reducing integration costs and improving application efficiency across industries.

  • 3.png

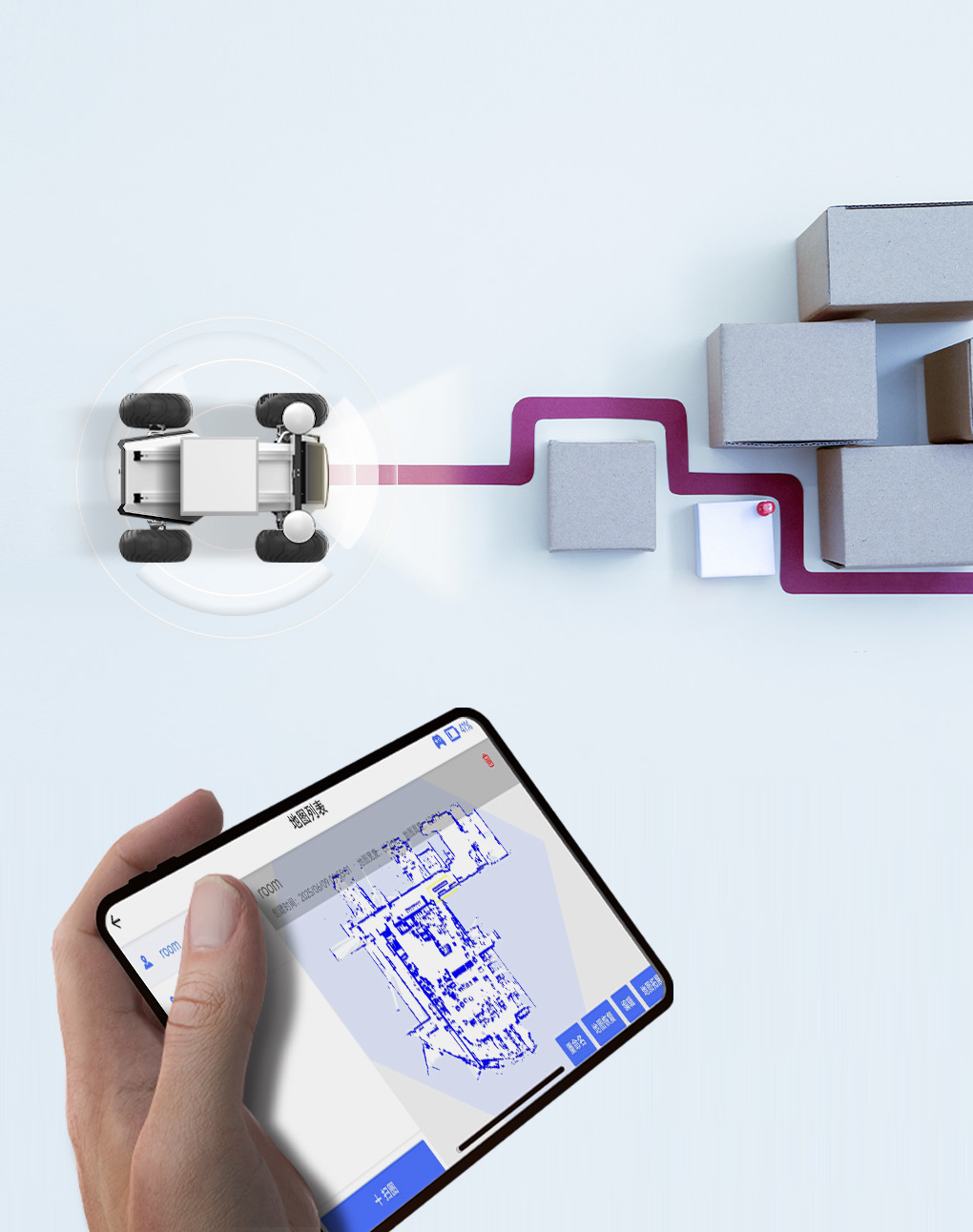

    Full-Scene Environment Compatibility

    1. Smooth switching across indoor and outdoor terrains.

    2. Fast map management: quick import, editing, and updates.

    3. Terrain adaptation: auto-recognize slope and flatness, adjusting motion parameters to ensure passability.

  • 6.png

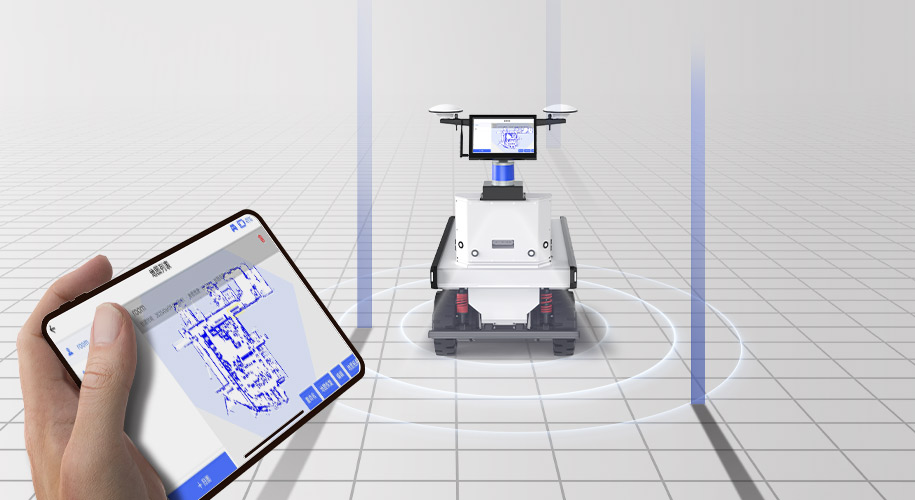

    Low-Code & Visual Development

    1. Smooth switching across indoor and outdoor terrains.

    2. Fast map management: quick import, editing, and updates.

    3. Terrain adaptation: auto-recognize slope and flatness, adjusting motion parameters to ensure passability.

  • 4.png

    Hassle-Free Secondary Development

    1.API: WebSocket Interface | Python/C++ Supported

    2.Real-Time Status Sharing: Open Data of Position, Power, Speed, Task Progress, etc.

    3.Custom Plugins: Supports development of industry application plugins | Seamless connection

  • 5.png

    Dev Resources & Services

    1.Docs: Interface Manuals, API Refs, Scenario Tutorials

    2.Toolkit: SDK, Simulators, Debuggers, Test Cases

    3.Tech Support: Dedicated Response, Customized Dev Guidance

    4.Upgrade Services: Continuous Alg & Func Updates, Long-Term System Compatibility

No record
No record

Multi-scenario Navigation Capability

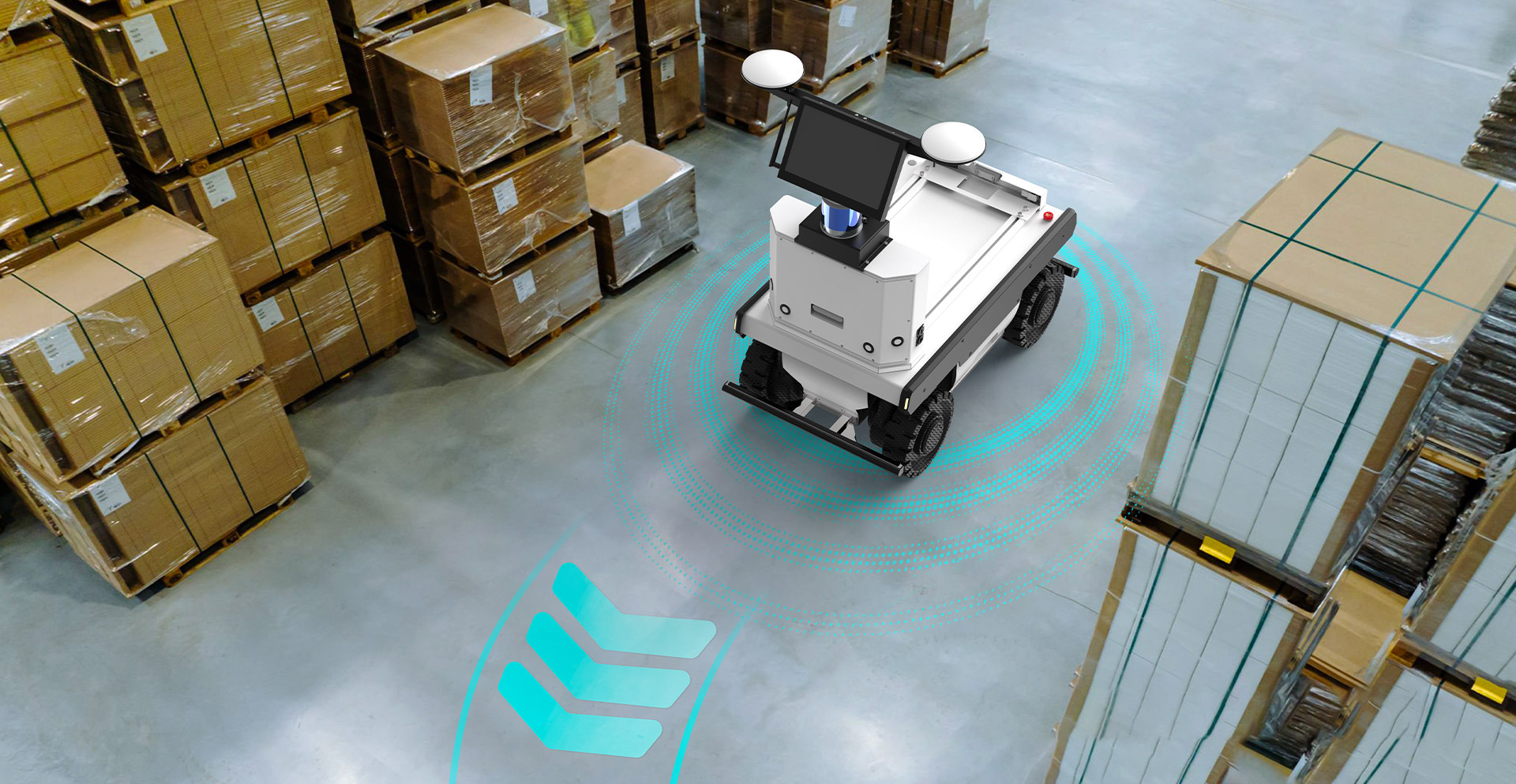

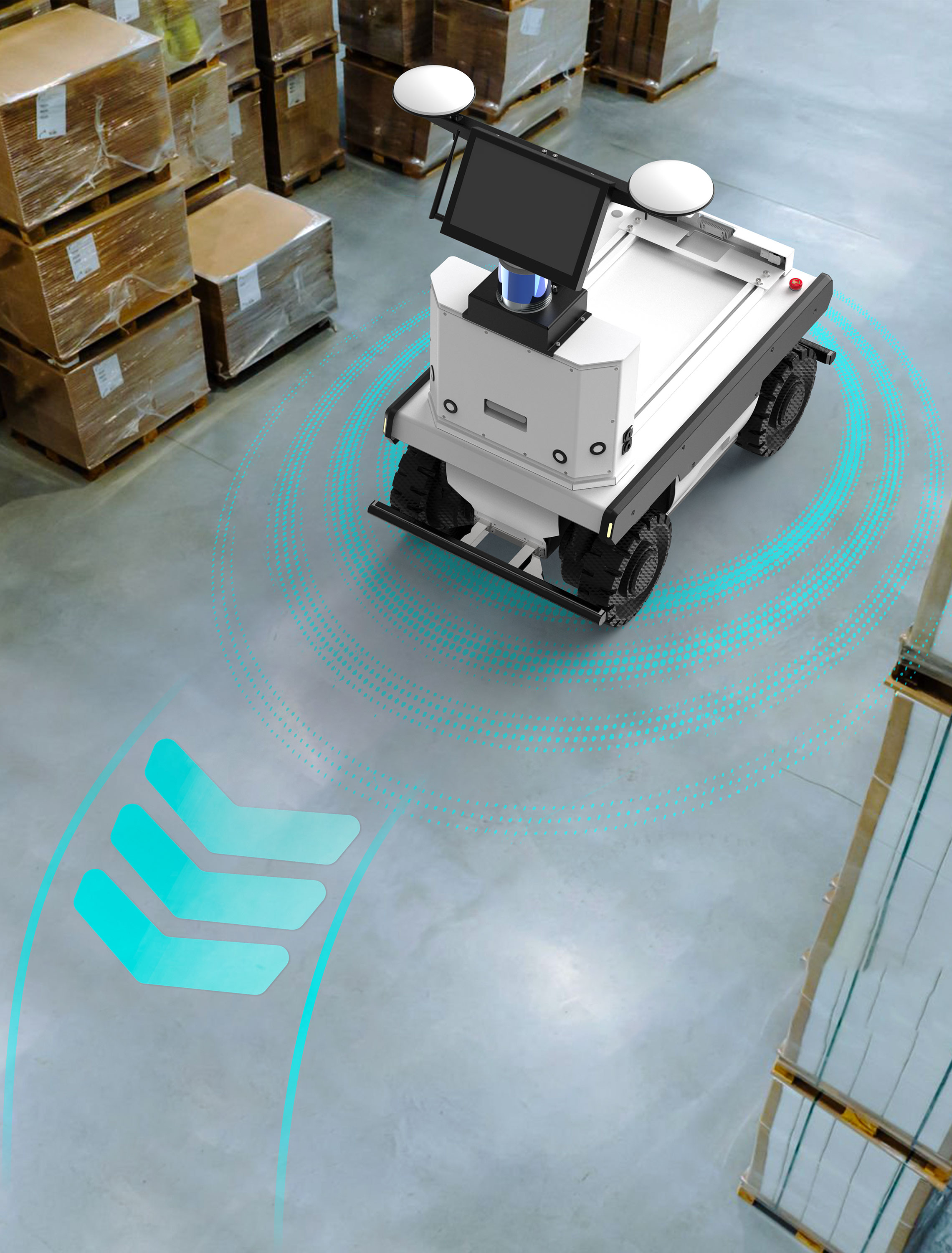

  • Indoor-Outdoor Narrow-Space Transportation

    Indoor-Outdoor Narrow-Space Transportation

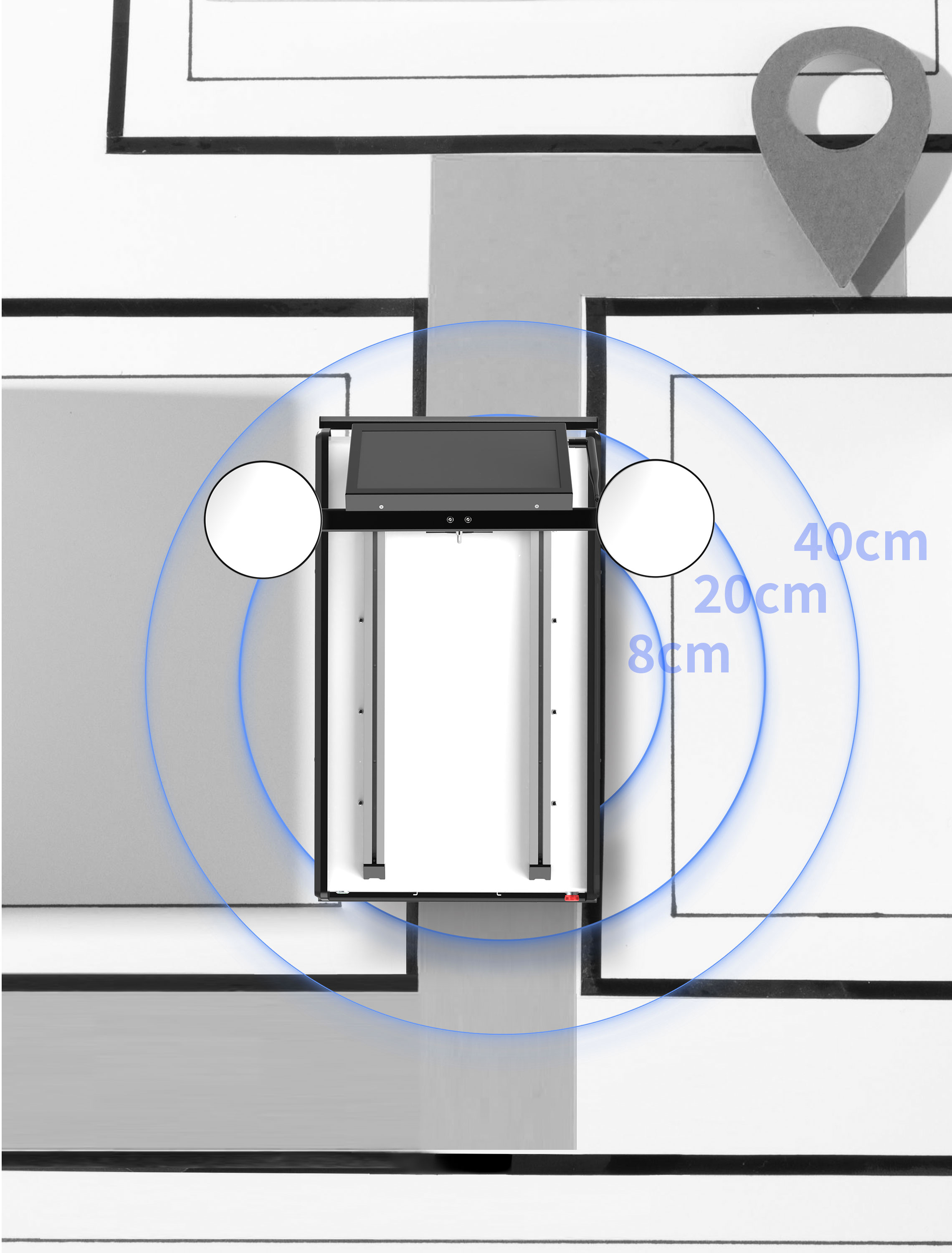

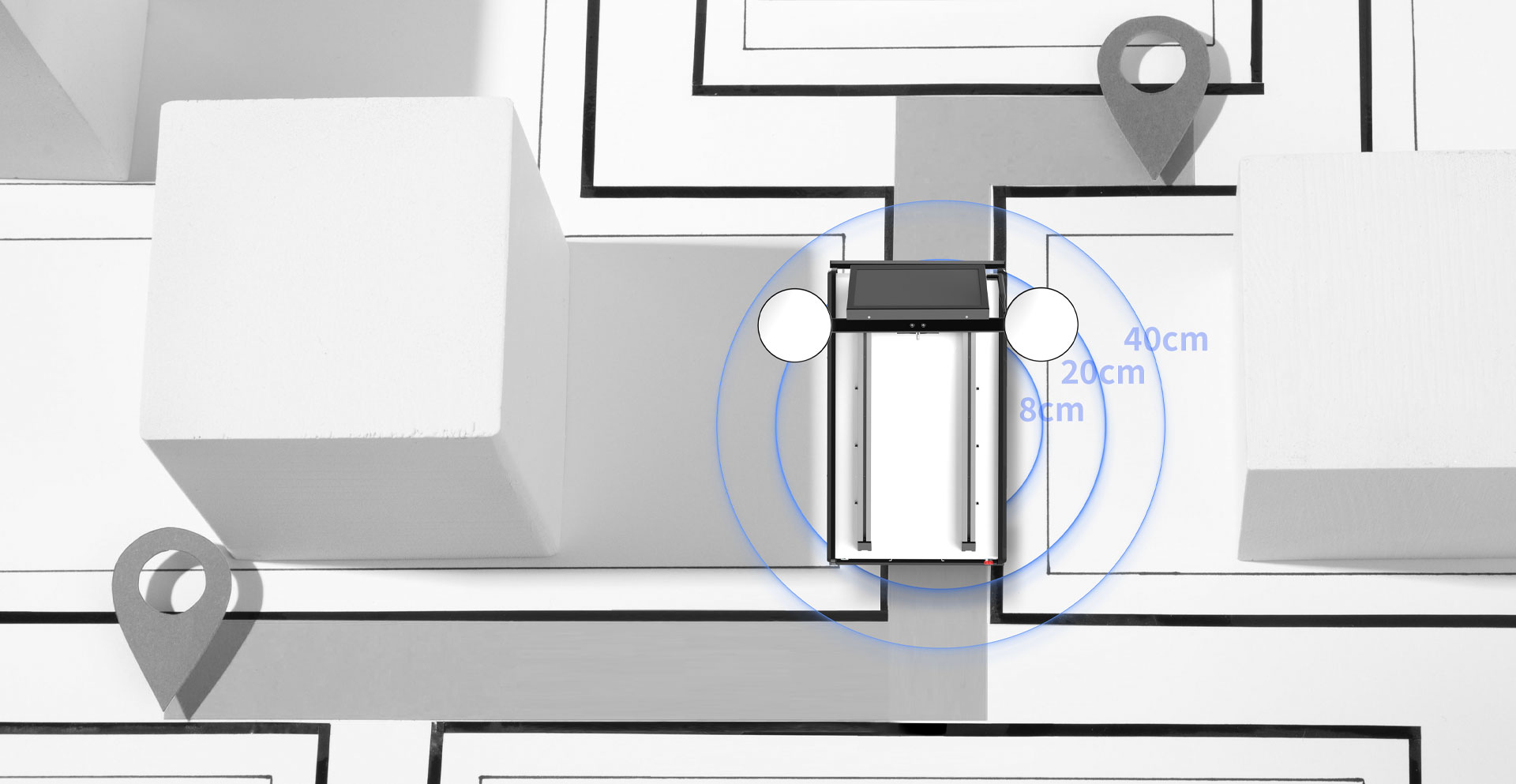

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

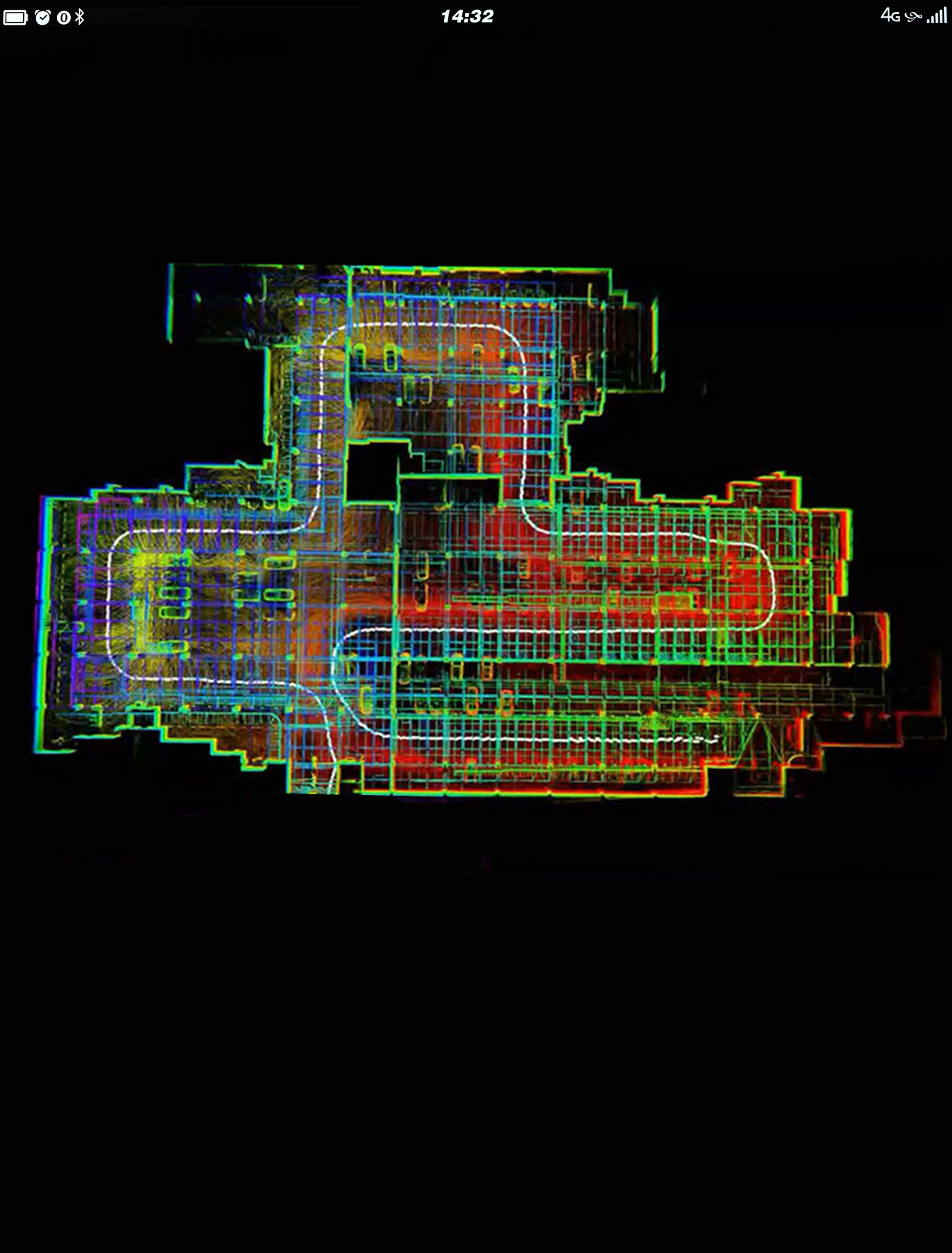

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

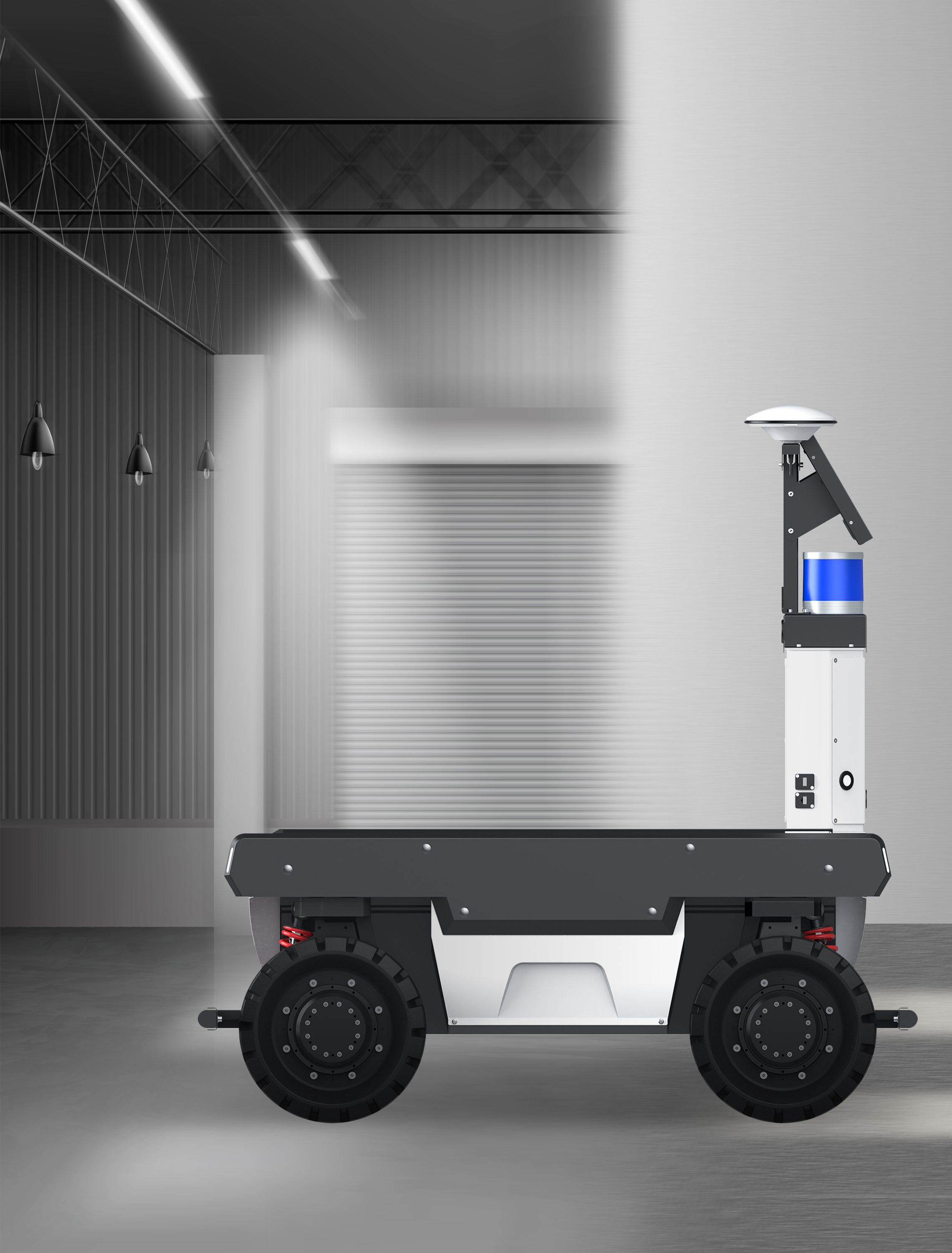

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-Space Transportation

    Indoor-Outdoor Narrow-Space Transportation

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-industry Applications

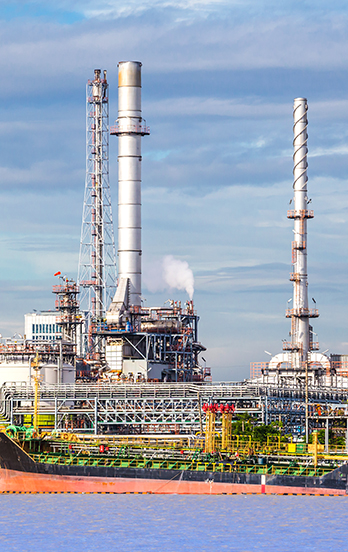

  • Energy

    Energy

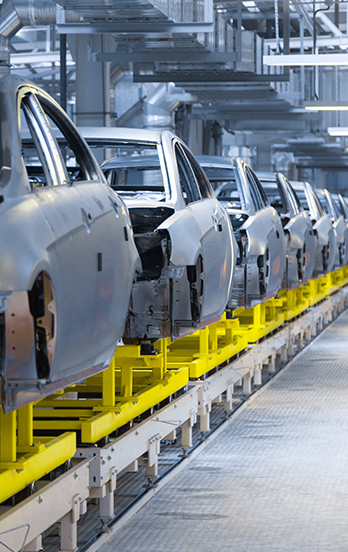

  • Industry

    Industry

  • Agriculture

    Agriculture

  • Medical

    Medical

Support the deployment of various modular applications,

and jointly expand the infinite industry future with you.

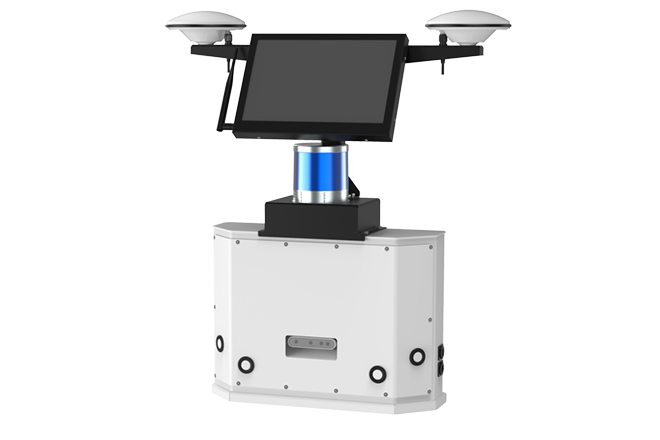

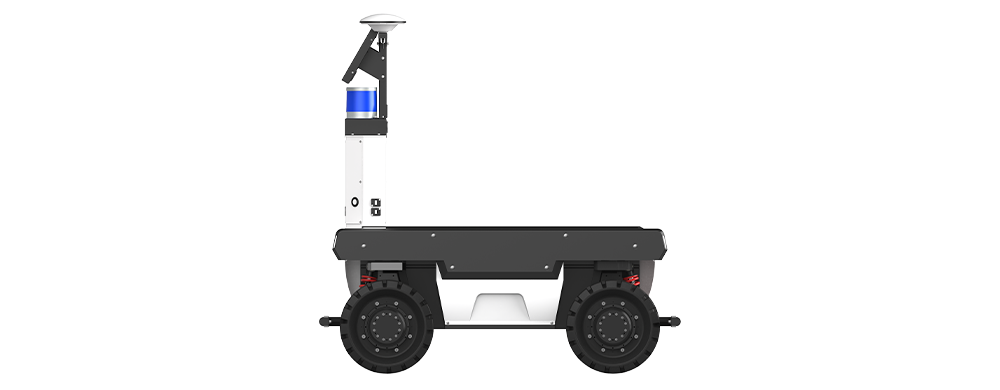

NV-magic

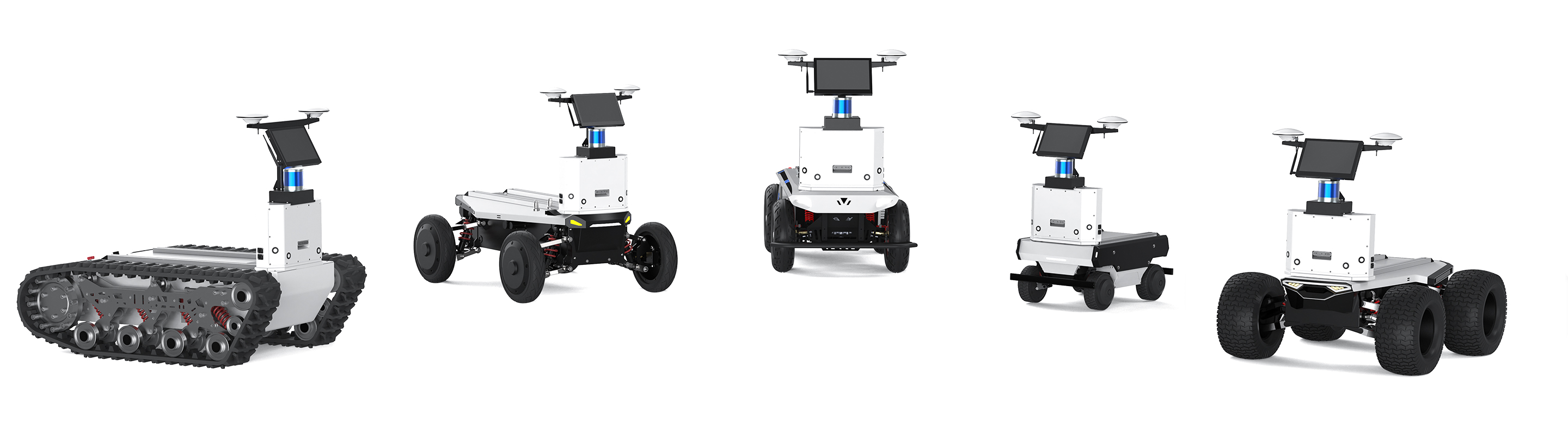

  • Chassis Types：Ackermann Chassis, 4WT/4WD Chassis, Tracked Chassis, Differential Chassis
  • Embedded Computer：APQ Intel Core i5-8500
  • Storage：128G
  • Memory：16G
  • LiDAR：2D LiDAR(16m Measuring Radius) / 3D LiDAR(100m Measuring Radius)
  • Depth Camera：73.8°× 58.8°(Depth FOV) 80.9°× 51.7°(Color FOV)
  • Camera Range：0.2-4m
  • System Configuration：Ubuntu 16.04 / 22.04
  • Nav System Version：ROS 1/ROS 2
  • Operating Environment：Indoor outdoor
  • Nav Functions：Line Following, Free Path, Draw Path, Terrain Perception, Environment Recognition, Crowd Detection, Privacy & Security, Obstacle Avoidance, Risk Sensing
  • Configuration：Nav Module + Chassis / Nav Module + Chassis + Dispatching System
  • Config Desc：Components and functions support modular upgrades; specifications are subject to the actual product configuration.
  • Tech Docs：API Interface, Open-Source Code, Chassis CAN Protocol, Chassis STP Drawing, Driver ROS Package
  • Services：One-to-One Development Tech Support
